Parts Catalog
Brake calipers
6
Parts Diagram
Parts Catalog
Foot rests - Lateral stand
by
Front master cilinder
Brake calipers
1
2
3
4
5
6
7
8
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Rear brake caliper
GU23653011
Not Available
2
screw
GU98622422
Not Available
3
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
4
Nut
GU92602208
Not Available
5
Rear brake cal. decal
GU19654900
Not Available
6
Connection
GU19668000
£40,19 Unit Price incl. VAT
7
Brake hose
GU19658660
£68,81 Unit Price incl. VAT
8
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
9
Gasket
GU25656100
£1,57 Unit Price incl. VAT
10
Stop switch
GU14657050
£48,26 Unit Price incl. VAT
11
Cap
GU12735100
£2,12 Unit Price incl. VAT
12
pipe
GU27658720
Not Available
13
Eyelet
GU19436500
Not Available
14
Guard
GU17573860
Not Available
15
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
16
Brake hose
GU17658860
£46,37 Unit Price incl. VAT
17
RH front brake caliper Grimeca
GU31652265
Not Available
18
Brake caliper decal
GU19652700
Not Available
19
screw
GU98622422
Not Available
20
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
21
Washer 8,5X18X0,5
GU95100250
£18,16 Unit Price incl. VAT
21
Washer 8,5X18X0,8
GU95100251
Not Available
22
Brake caliper rev. kit GRIMECA
GU66659031
Not Available
22
Brake caliper rev. kit BREMBO
GU39659000
£34,49 Unit Price incl. VAT
23
Pins+spring BREMBO
GU39659100
£13,42 Unit Price incl. VAT
23
Pins+spring GRIMECA
GU31659165
Not Available
24
Bleeder+cap GRIMECA
GU31659265
£12,54 Unit Price incl. VAT
24
Bleeder+cap BREMBO D.6
GU65659200
£17,86 Unit Price incl. VAT
25
Brake caliper cover BREMBO
GU39654700
Not Available
25
Brake caliper cover GRIMECA
GU31654765
Not Available
26
Pads pair BREMBO
GU27654610
£16,44 Unit Price incl. VAT
26
Pads pair GRIMECA
GU31654665
Not Available

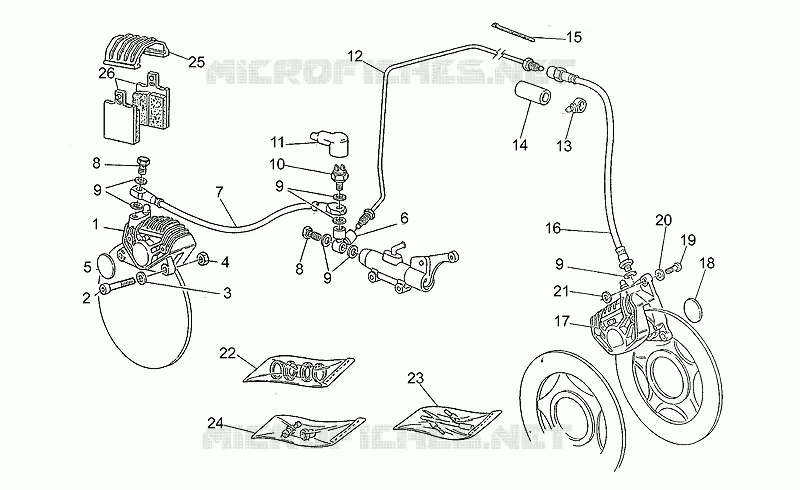

Find the detailed Brake calipers MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
