Engine displacement
125
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Central body I
6
Parts Diagram
Parts Catalog
Rear wheel
by
Front body - Internal shield
Central body I
1
2
3
4
5
6
7
7
8
9
10
11
1
Glove comp.door, green
AP8168750
Not Available
1
Glove comp.door, blue
AP8168826
Not Available
1
Glove comp.door, grey
AP8158995
Not Available
2
Bag holder hook, black
AP8158996
Not Available
3
Glove box internal grille
AP8139265
Not Available
4
Couv.homolog. gris;
AP8139269
£16,10 Unit Price incl. VAT
5
Gasket
AP8144257
Not Available
6
Screw clip D4,2
AP8102782
Not Available
7
Vis taraud pour plast. Inox
AP8150421
£1,88 Unit Price incl. VAT
8
Vis
AP8152345
£1,46 Unit Price incl. VAT
9
Vis
AP8152351
£0,18 Unit Price incl. VAT
10
Ecrou serrure
AP8102523
£9,53 Unit Price incl. VAT
11
Top box lock
AP8104647
Not Available

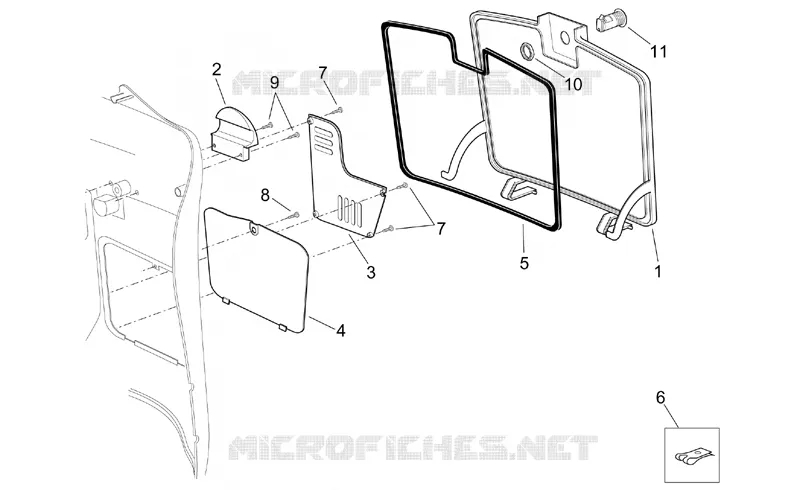

Find the detailed Central body I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
