1
Engine displacement
350
2
Model
V35
3
Year
1986
4
Trim
V 35 II
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Front/rear shock absorber
by
Fuel supply
Frame
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
22
22
23
1
Frame
GU27400135
Not Available
2
Lock
GU19782520
Not Available
3
Grommet
GU91551092
Not Available
4
screw 25 mm
GU98622525
£2,04 Unit Price incl. VAT
5
Washer
GU95120105
£1,04 Unit Price incl. VAT
6
Nut
GU92602210
Not Available
7
Plate
GU27418210
Not Available
8
screw
GU98054418
Not Available
9
Washer
GU95004208
£0,70 Unit Price incl. VAT
10
Disc
GU39103500
Not Available
11
Spacer
GU91180716
Not Available
12
screw
GU98054325
Not Available
13
Washer 6,15x11x0,8
GU95004206
Not Available
14
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
15
Pad
GU39103400
£10,22 Unit Price incl. VAT
16
Rubber spacer
GU27109085
£12,50 Unit Price incl. VAT
17
Pad
GU14107100
£6,54 Unit Price incl. VAT
18
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
19
Rubber spacer
GU27108935
Not Available
20
Pin M10x205
GU98110199
£37,12 Unit Price incl. VAT
21
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
22
Nut
GU92602210
Not Available
23
screw
GU98052555
£2,44 Unit Price incl. VAT

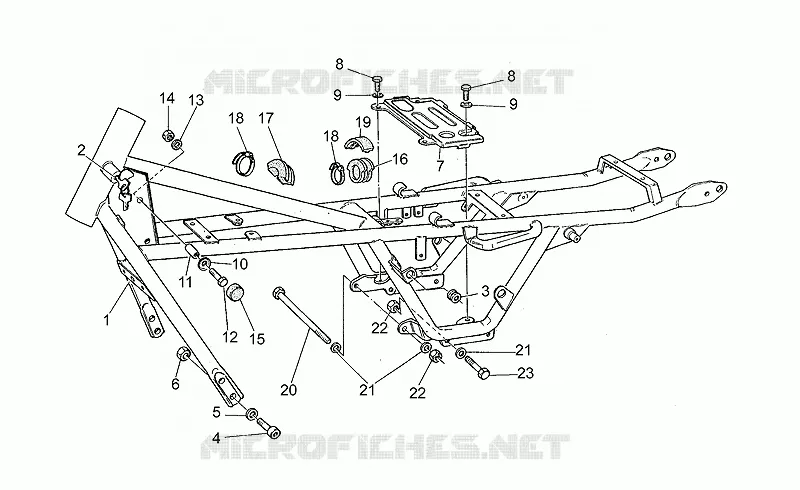

Find the detailed Frame MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
