1
Engine displacement
350
2
Model
V35
3
Year
1986
4
Trim
V 35 II
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Rear wheel
Front wheel
1
2
3
3
4
4
5
6
7
7
8
9
10
11
12
13
14
14
15
1
Front wheel, white
GU27610337
Not Available
1
Front wheel, lt.grey
GU66610320
Not Available
1
Front wheel, dk.grey
GU27610336
Not Available
2
Bearing
GU92204217
£60,25 Unit Price incl. VAT
3
Spacer
GU19615335
Not Available
4
Brake disc
GU31613380
Not Available
5
screw
GU98052480
Not Available
6
Cap nut
GU92730082
Not Available
7
Washer
GU95000208
£5,23 Unit Price incl. VAT
8
Front wheel spindle
GU62614120
Not Available
9
Washer 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
10
Nut M16X1,5
GU92602516
Not Available
11
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
12
Spacer
GU62616320
Not Available
13
Spacer
GU91181803
Not Available
14
Flange
GU27616335
Not Available
15
Odometer gear 20/11
GU66762520
Not Available

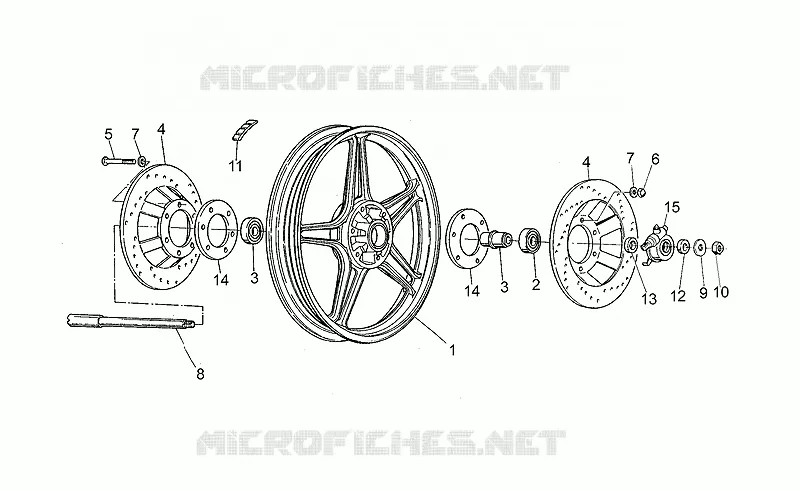

Find the detailed Front wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
