1
Engine displacement
350
2
Model
V35
3
Year
1985
4
Trim
V 35 II
5
Parts Catalog

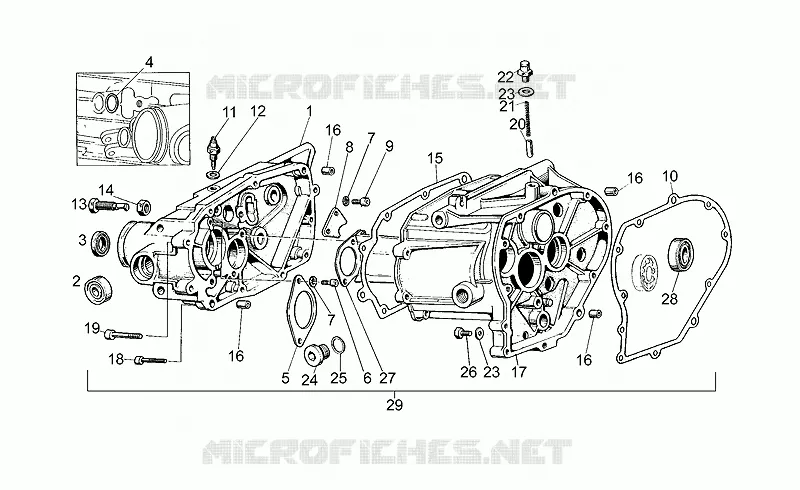

Transmission cage
6
Parts Diagram
Parts Catalog
Oil pump
by
Transmission cage
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
16
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
1
Box cover
GU19200821
Not Available
2
Bearing 15x35x11
GU92204215
£38,80 Unit Price incl. VAT
3
Gasket ring 28x40x7
GU90402841
£3,04 Unit Price incl. VAT
4
O-ring 13,95x2,92
GU90706140
£1,25 Unit Price incl. VAT
5
plate
GU19213820
Not Available
6
screw
GU98622314
£0,67 Unit Price incl. VAT
7
Washer 6,4x10x0,7
GU14217901
Not Available
8
Plate
GU19235800
£21,23 Unit Price incl. VAT
9
screw
GU98622314
£0,67 Unit Price incl. VAT
10
Gasket
GU19200320
Not Available
11
Sensor
GU19207220
£88,42 Unit Price incl. VAT
12
Gasket 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
13
Screw M12x1,25
GU19237800
£20,20 Unit Price incl. VAT
14
Low nut M12x1,25
GU92602512
£1,57 Unit Price incl. VAT
15
Gasket
GU19201120
£5,68 Unit Price incl. VAT
16
Bushing 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
17
Transmission cage
GU19200222
Not Available
18
screw
GU98620330
£0,49 Unit Price incl. VAT
19
screw
GU98620435
Not Available
20
Pawl
GU55234700
£82,48 Unit Price incl. VAT
21
Lever return spring
GU94321067
£1,86 Unit Price incl. VAT
22
Breather plug
GU19206501
£16,73 Unit Price incl. VAT
23
Gasket
GU10528900
£4,45 Unit Price incl. VAT
24
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
25
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
26
Oil level plug
GU95980214
£12,80 Unit Price incl. VAT
27
Oil bulhead
GU19208220
Not Available
28
Ball bearing 20x42x12
GU92201120
£32,68 Unit Price incl. VAT
29
Gear box assy
GU19991520
Not Available

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
