1
Engine displacement
350
2
Model
V35
3
Year
1985
4
Trim
V 35 II
5
Parts Catalog
Carburettor
6
Parts Diagram
Parts Catalog
Gear box
by
Crankcase
Carburettor
1
3
4
5
6
6
7
8
10
11
12
13
14
15
16
17
18
20
21
22
23
24
25
27
28
30
31
32
34
35
36
38
40
41
1
Gasket envelope
GU39939900
£11,65 Unit Price incl. VAT
3
Wire tensioner screw
GU53937200
Not Available
4
Nut
GU19938880
£2,63 Unit Price incl. VAT
5
pipe
GU49938900
£10,26 Unit Price incl. VAT
6
Nut
GU12937300
Not Available
7
screw
GU13937900
Not Available
8
Starter device cover
GU17937450
Not Available
10
Valve spring
GU39937600
Not Available
11
Starter valve
GU13937800
£12,94 Unit Price incl. VAT
12
Adj.min.eng.speed screw
GU13936200
Not Available
13
Spring
GU13936300
£1,14 Unit Price incl. VAT
14
Gas valve adjuster screw
GU13936600
Not Available
15
Spring
GU13936700
Not Available
16
screw
GU13932800
Not Available
17
Washer
GU13932900
Not Available
18
Valve cover
GU53935000
Not Available
20
Wire tensioner screw
GU12937200
£5,36 Unit Price incl. VAT
21
Gas valve return spring
GU53937100
Not Available
22
Conical pin E27
GU25937701
Not Available
23
Conical pin clip
GU55938585
Not Available
24
Gas valve 40
GU61934800
Not Available
25
Starter jet
GU25936000
Not Available
27
Needle valve
GU19935500
Not Available
28
Idle jet 40
GU19935900
Not Available
30
Conical pin 8
GU19934960
Not Available
31
Fuel filter
GU43934000
£2,52 Unit Price incl. VAT
32
Fuel pipe union cap
GU13934600
£1,96 Unit Price incl. VAT
34
Cap fixing screw
GU10934900
Not Available
35
Float
GU61934300
Not Available
36
Float pin
GU13933100
£17,57 Unit Price incl. VAT
38
Float chamber
GU10934400
Not Available
40
Main jet 108
GU19935701
£1,22 Unit Price incl. VAT
41
Cover
GU13933700
Not Available

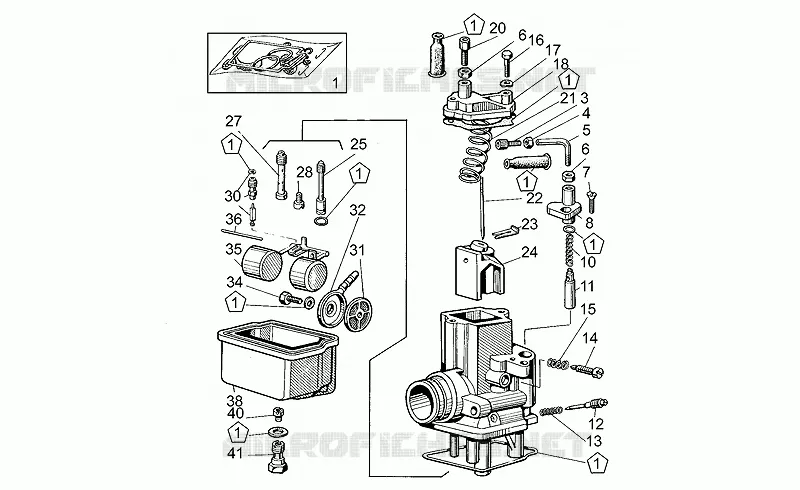

Find the detailed Carburettor MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
