1
Engine displacement
350
2
Model
V35
3
Year
1985
4
Trim
V 35 II
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Fuel supply-exhaust
by
Gear box
Drive shaft
1
1
2
4
5
6
7
7
8
9
10
11
12
13
14
16
18
19
20
21
22
23
24
25
25
26
1
Crankshaft cpl.
GU19064121
Not Available
1
Drive shaft
GU19064120
£1 098,53 Unit Price incl. VAT
2
Cover
GU19065400
£13,62 Unit Price incl. VAT
4
Connecting rod screw
GU19062220
Not Available
5
Nut
GU61062401
Not Available
6
Bearing half-shell
GU19062022
£57,68 Unit Price incl. VAT
7
Front main half-bearing
GU19065623
£61,20 Unit Price incl. VAT
8
Rear main half-bearing
GU19066522
£272,05 Unit Price incl. VAT
9
Shoulder
GU31066480
Not Available
10
Piston
GU19060425
Not Available
10
Piston
GU19060421
Not Available
11
Piston ring
GU19060700
£83,65 Unit Price incl. VAT
12
Piston ring
GU19061000
Not Available
13
Piston pin
GU19061220
Not Available
14
Stop ring
GU19061320
Not Available
16
Pistonring set
GU19060600
Not Available
18
screw
GU19067700
£2,51 Unit Price incl. VAT
19
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
20
Chain ring MOTOPLAT
GU19067900
Not Available
21
screw
GU98054318
£0,94 Unit Price incl. VAT
21
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
22
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
23
Bushing
GU19061821
£30,20 Unit Price incl. VAT
24
Washer 6,4x10x0,7
GU14217901
Not Available
25
Connecting rod
GU19061521
£414,71 Unit Price incl. VAT
26
screw
GU19062221
Not Available

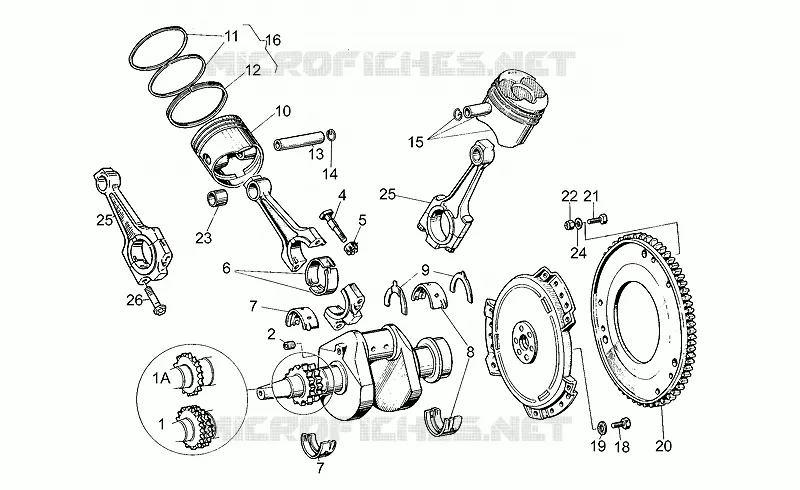

Find the detailed Drive shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
