1
Engine displacement
350
2
Model
V35
3
Year
1985
4
Trim
V 35 II
5
Parts Catalog
Foot rests - Lateral stand
6
Parts Diagram
Parts Catalog
Front bumper
by
Front master cilinder
Foot rests - Lateral stand
1
2
2
3
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
screw
GU98052565
£4,44 Unit Price incl. VAT
2
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
3
Nut
GU92602210
Not Available
4
Bushing 19 mm
GU18252050
Not Available
5
RH craddle arm
GU19420320
Not Available
5
RH craddle arm
GU19420300
Not Available
6
LH craddle arm
GU19422100
Not Available
6
LH craddle arm
GU19422120
Not Available
7
Nut
GU92602206
£1,68 Unit Price incl. VAT
8
Hex screw
GU98054322
£0,40 Unit Price incl. VAT
9
Central stand
GU19430305
Not Available
10
Rubber pedal
GU13432640
£9,67 Unit Price incl. VAT
11
Lateral stand spring
GU12434001
Not Available
12
screw
GU98054530
£1,91 Unit Price incl. VAT
13
Spacer
GU91181114
£22,98 Unit Price incl. VAT
14
Spring
GU94322215
£10,33 Unit Price incl. VAT
15
Washer
GU95000210
Not Available
16
Nut M10x1,5
GU92630510
£1,58 Unit Price incl. VAT
17
Lateral stand
GU19432000
Not Available
18
Lockup rubber
GU19433000
Not Available
19
Pin
GU99105129
Not Available
20
Spring
GU19434000
Not Available
21
RH pipe
GU39440700
Not Available
22
LH pipe
GU39441800
Not Available
23
screw
GU98820430
Not Available
24
Nut
GU92602208
Not Available
25
Front footrest
GU39443200
Not Available
26
Rear footrest
GU61442300
Not Available
27
Hex screw M10X22
GU98054522
Not Available
28
Notched washer
GU95021110
Not Available
29
Nut
GU92602410
£0,96 Unit Price incl. VAT
30
Pin M10x250
GU53429500
£35,46 Unit Price incl. VAT
31
Bushing
GU19017000
£10,75 Unit Price incl. VAT

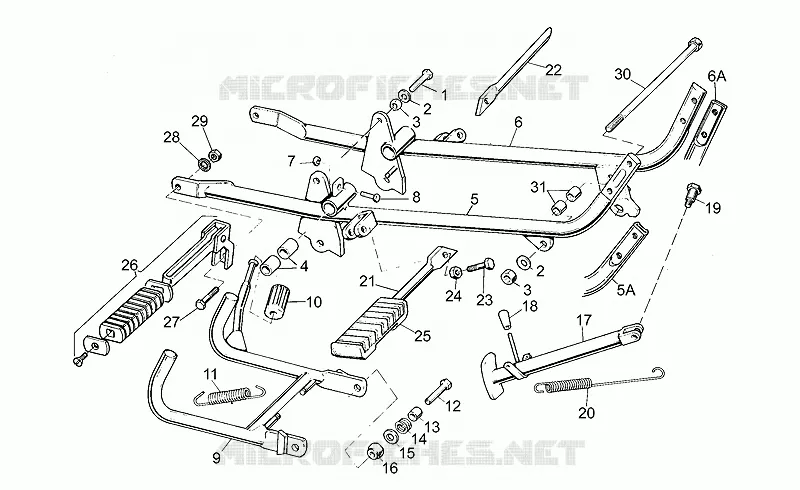

Find the detailed Foot rests - Lateral stand MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
