Engine displacement
350
2
Model
V35
3
Year
1982
4
Trim
V 35 C - V 50 C
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Swing arm
by
RH Front brake system
Electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Instrum.board cable kit
GU19747281
Not Available
2
screw
GU98054212
£0,47 Unit Price incl. VAT
3
Nut
GU92602205
£0,96 Unit Price incl. VAT
4
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
5
Electrical system
GU19747120
Not Available
6
Taillight wiring harn.
GU23747380
Not Available
7
screw
GU98622220
Not Available
8
plate
GU19750435
Not Available
9
Fuse holder box
GU19743000
Not Available
10
Fuse 16A
GU17742550
Not Available
11
Starter relay
GU19732500
£27,72 Unit Price incl. VAT
12
Flasher unit
GU17750520
Not Available
13
Block
GU17751200
Not Available
14
Horn
GU61743700
Not Available
15
Wiring
GU19726380
Not Available
16
Wire
GU19747105
£27,07 Unit Price incl. VAT
17
screw
GU98822440
Not Available
18
Washer
GU95000208
£5,23 Unit Price incl. VAT
19
Spacer
GU91181016
Not Available
20
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
21
Nut
GU92602208
Not Available
22
Alternator-regulator wiring
GU19725820
Not Available

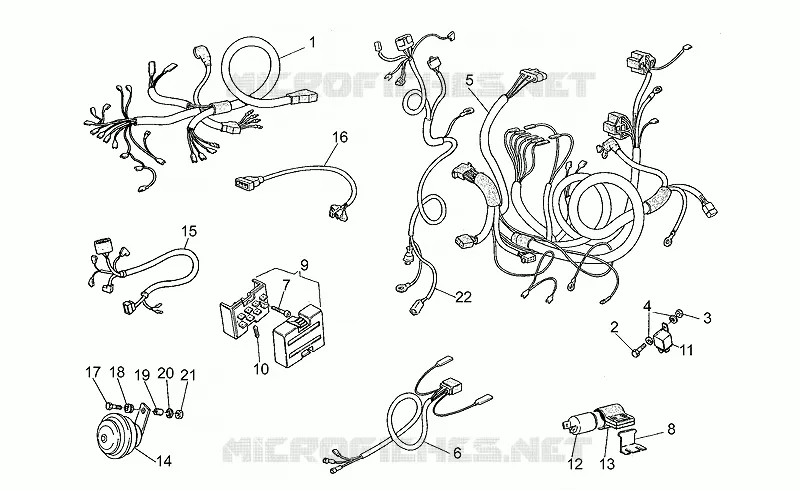

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
