1
Engine displacement
125
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Rear caliper
by
Cdi magneto assy
Cylinder head
1
1
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
1
Exhaust pipe stud bolt
AP8550401
Not Available
2
Half-cone
AP8550508
Not Available
3
Cup
AP8580076
Not Available
4
Spring
AP8580160
Not Available
5
Valve gasket ring
AP8550326
Not Available
6
Cup
AP8580069
Not Available
7
Intake valve
AP8580078
Not Available
8
Exhaust valve
AP8580079
Not Available
9
Cylinder head gasket 1,1 mm
AP8580040
Not Available
9
Cylinder head gasket 0,3 mm
AP8590007
Not Available
9
Cylinder head gasket 1,1 mm
AP8580180
Not Available
9
Cylinder head gasket 0,3 mm
AP8577021
Not Available
10
Cylinder head assy.
AP8580204
Not Available
11
screw
AP8580086
Not Available
12
Locating dowel
AP8551015
Not Available
13
Dowel
AP8560016
Not Available
14
Exhaust pipe gasket
AP8580066
Not Available
15
Screw
AP8551060
Not Available
16
Thermostat cover
AP8580154
Not Available
17
Thermostat
AP8575009
Not Available
18
Thermistor
AP8580126
Not Available
19
pipe
AP8580146
Not Available
20
O-ring
AP8575010
Not Available

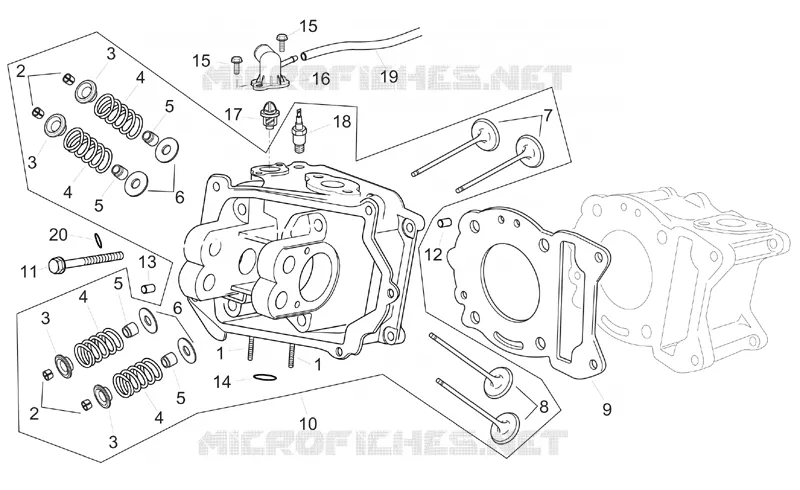

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
