1
Engine displacement
350
2
Model
V35
3
Year
2001
4
Trim
V 35 Carabinieri/PA
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Air filter
by
Swing arm
Front fork
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
35
36
38
39
40
41
42
43
44
1
Stem base
GU23494070
Not Available
2
Rondelle bouchon fourreau
GU18513560
£2,12 Unit Price incl. VAT
3
Hex screw
GU98072555
Not Available
4
Rondelle
GU95007210
£1,52 Unit Price incl. VAT
5
Spacer
GU91181016
Not Available
6
Bouchon tube
GU18513460
£15,96 Unit Price incl. VAT
7
Fork upper plate
GU23493140
Not Available
8
Vis
GU98610540
£4,64 Unit Price incl. VAT
9
screw
GU98612535
Not Available
10
Steering lock bush
GU18516660
Not Available
11
RH sleeve
GU19522515
Not Available
11
RH sleeve -grey-
GU31522515
£610,19 Unit Price incl. VAT
12
LH sleeve -grey-
GU31522615
Not Available
12
LH sleeve
GU19522615
Not Available
13
Oil seal
GU90403857
Not Available
14
DOUILLE
GU20527620
£15,95 Unit Price incl. VAT
15
Vis
GU98622320
£0,96 Unit Price incl. VAT
16
Rondelle
GU95100116
£1,60 Unit Price incl. VAT
17
Sleeve
GU23525470
£292,21 Unit Price incl. VAT
18
Dust cover
GU31524550
Not Available
19
Shock absorber
GU23526470
Not Available
20
RESSORT
GU23526610
£36,22 Unit Price incl. VAT
21
End stop
GU28527540
Not Available
22
Spring
GU23526910
Not Available
23
screw
GU98622545
£2,00 Unit Price incl. VAT
24
screw
GU98622530
Not Available
25
Vis percée
GU28556450
£25,48 Unit Price incl. VAT
26
Soupape air
GU28556250
£41,24 Unit Price incl. VAT
27
Gasket ring
GU90706282
£0,65 Unit Price incl. VAT
28
Copper washer
GU28556350
£0,65 Unit Price incl. VAT
29
Front shock absorber tube
GU19529660
Not Available
30
Nut
GU92781100
Not Available
31
RONDELLE
GU27499120
£9,58 Unit Price incl. VAT
32
Joint torique
GU90706094
£1,87 Unit Price incl. VAT
33
Anti-rubbing pipe
GU23526370
Not Available
34
Ecrou
GU92602308
£0,96 Unit Price incl. VAT
35
Spacer
GU23527910
£1,14 Unit Price incl. VAT
36
Cup
GU28526540
Not Available
37
Handlebar collar
GU17500200
Not Available
38
Stud bolt
GU28500745
Not Available
39
Stud bolt
GU19500715
Not Available
40
Rondelle
GU95000208
£5,23 Unit Price incl. VAT
41
Ecrou
GU92630108
£1,02 Unit Price incl. VAT
42
Spring
GU27526620
£71,42 Unit Price incl. VAT
43
Bushing
GU23526510
£5,06 Unit Price incl. VAT
44
Anti-rubbing pipe
GU27526320
Not Available

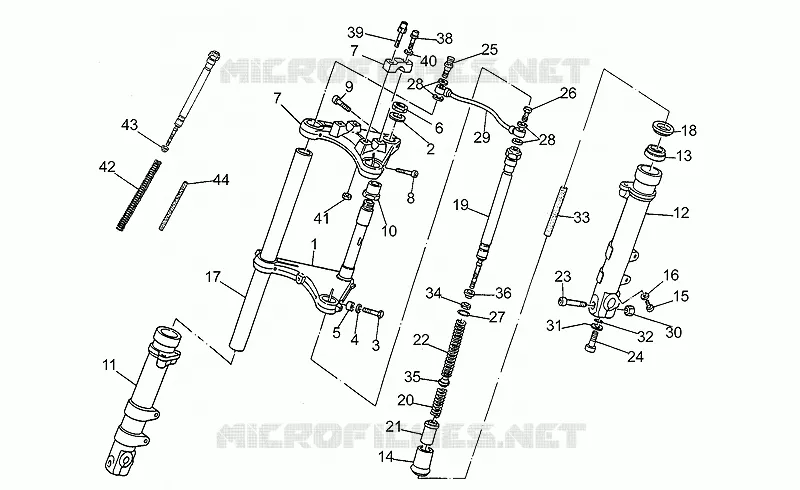

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
