Engine displacement
125
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Marzocchi front fork - Hubs, sleeves
6
Parts Diagram
Parts Catalog
Oil pump
by
Rear shock absorber
Marzocchi front fork - Hubs, sleeves
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
17
18
19
20
21
21
1
Segment
AP8123754
£13,78 Unit Price incl. VAT
2
Contre-ressort;
AP8123708
£14,57 Unit Price incl. VAT
3
Screw M8x30
AP8203570
Not Available
4
Rondelle étanchéité
AP8203572
£1,90 Unit Price incl. VAT
5
Bague seeger;
AP8203950
£2,53 Unit Price incl. VAT
6
Plug cpl.
AP8123698
Not Available
7
Spring
AP8163003
Not Available
8
Shock absorber
AP8163004
Not Available
9
screw
AP8123920
Not Available
10
Tampon de fond;
AP8123701
£18,01 Unit Price incl. VAT
11
RH hub
AP8163006
Not Available
12
LH hub
AP8163007
Not Available
13
Dust cover
AP8203258
Not Available
14
Stop ring
AP8123704
Not Available
15
Gasket ring
AP8103392
Not Available
16
Cup
AP8123705
Not Available
17
Douille de coulissement;
AP8203447
£27,50 Unit Price incl. VAT
18
RH sleeve
AP8163008
Not Available
19
LH sleeve
AP8163009
Not Available
20
Guard decal
AP8167127
Not Available
21
Catadioptre;
AP8224342
£15,17 Unit Price incl. VAT

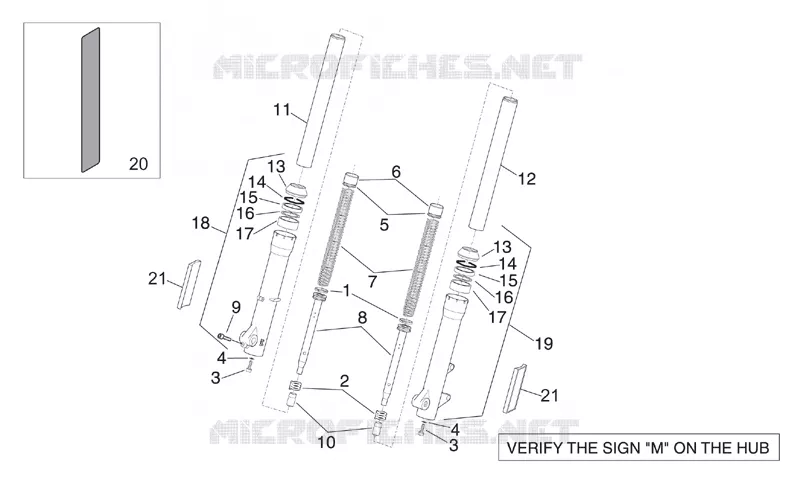

Find the detailed Marzocchi front fork - Hubs, sleeves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
