Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Cafè - Ballabio
5
Parts Catalog
Transmission complete II
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Rear wheel
Transmission complete II
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Transmission complete black
GU01350290
Not Available
2
Transmission housingblack
GU01350390
£424,43 Unit Price incl. VAT
3
Goujon
GU04357900
£16,85 Unit Price incl. VAT
4
Bague
GU04358700
£16,27 Unit Price incl. VAT
5
Spacer
GU01356930
£7,49 Unit Price incl. VAT
6
Bouchon huile
GU01351230
£25,00 Unit Price incl. VAT
7
Garniture
GU01154230
£2,34 Unit Price incl. VAT
8
Oil level plug
GU95980214
£12,80 Unit Price incl. VAT
9
Joint
GU01528930
£4,21 Unit Price incl. VAT
10
Bague d'étanchéité 38X50X7
GU90413850
£38,47 Unit Price incl. VAT
11
Bague seeger
GU90353040
£2,64 Unit Price incl. VAT
12
Roulement à rouleaux 40X45X55
GU92234055
£47,08 Unit Price incl. VAT
13
Ecrou
GU04356700
£12,46 Unit Price incl. VAT
14
Bearing 25X62X25,4
GU92201926
Not Available
15
Entretoise
GU04356800
£48,29 Unit Price incl. VAT
16
Joint torique 61,60X2,62
GU90706616
£16,14 Unit Price incl. VAT
17
Gasket ring 32X52X7
GU90403257
£12,08 Unit Price incl. VAT
18
Ring nut
GU04354900
£87,00 Unit Price incl. VAT
19
Cale 1,8 mm
GU04355303
£12,26 Unit Price incl. VAT
19
Cale 1,5 mm
GU04355300
£2,87 Unit Price incl. VAT
19
Cale 1,7 mm
GU04355302
£12,26 Unit Price incl. VAT
19
Cale 1,6 mm
GU04355301
£12,26 Unit Price incl. VAT
19
Cale 1,9 mm
GU04355304
£12,26 Unit Price incl. VAT
20
Vis M8X25
GU19357660
£1,02 Unit Price incl. VAT
21
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
22
Roller bearing 12X24X16
GU92231216
£62,35 Unit Price incl. VAT
23
Bride
GU04350400
£34,61 Unit Price incl. VAT
24
Joint torique 158,42X2,62
GU90706958
£3,44 Unit Price incl. VAT
25
Cale 0,7 mm
GU04355101
£21,19 Unit Price incl. VAT
25
Cale 1,2 mm
GU04355106
£16,84 Unit Price incl. VAT
25
Cale 0,6 mm
GU04355100
£19,32 Unit Price incl. VAT
25
Cale 1,1 mm
GU04355105
£17,92 Unit Price incl. VAT
25
Cale 0,8 mm
GU04355102
£20,34 Unit Price incl. VAT
25
Cale 0,9 mm
GU04355103
£17,09 Unit Price incl. VAT
25
Cale 1 mm
GU04355104
£18,61 Unit Price incl. VAT
26
Bearing 80X125X14
GU92208014
£262,46 Unit Price incl. VAT
27
Bague d'étanchéité 70X85X8
GU90417085
£65,04 Unit Price incl. VAT
28
Bouchon vid.huile M10X1
GU31003766
£15,77 Unit Price incl. VAT
29
Bevel gear 11/32
GU01354630
£1 550,09 Unit Price incl. VAT
30
Roller bearing
GU92252225
£78,40 Unit Price incl. VAT
31
Ring
GU92259025
Not Available
32
Washer
GU04351900
Not Available
33
Rondelle
GU37359005
£13,40 Unit Price incl. VAT
34
Bouchon purge
GU19206501
£16,73 Unit Price incl. VAT
35
Roulement 20x52x15
GU92201821
£35,15 Unit Price incl. VAT
36
Bride de fixation
GU04353801
£46,20 Unit Price incl. VAT
37
Vis M6x14
GU98280614
£1,68 Unit Price incl. VAT

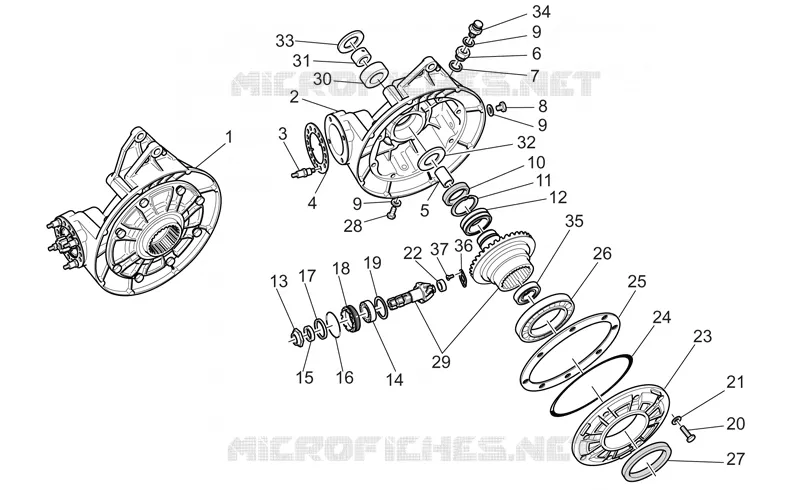

Find the detailed Transmission complete II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
