Transmission cage for MOTO GUZZI LAVERDA SCARABEO V 11 Cafè - Ballabio from 2004

Free shipping for all orders to United Kingdom over £150! See conditions.

Transmission cage

1

Gearbox black

GU01200290

£272,36 Unit Price incl. VAT

2

Case cover black

GU01200890

£77,72 Unit Price incl. VAT

3

Cover black

GU01201390

Not Available

4

Bouchon

GU93180220

£3,68 Unit Price incl. VAT

5

Bouchon niveau huile

GU01205730

£92,81 Unit Price incl. VAT

6

Joint

GU01528930

£4,21 Unit Price incl. VAT

7

Bouchon huile

GU12022600

£36,13 Unit Price incl. VAT

8

Joint torique 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

9

Bouchon vid.huile M10X1

GU31003766

£15,77 Unit Price incl. VAT

10

Plaquette

GU04205500

£4,18 Unit Price incl. VAT

11

screw

GU98280620

£1,24 Unit Price incl. VAT

12

Vis percée

GU04239400

£14,76 Unit Price incl. VAT

13

Garniture 12,25

GU12006400

£1,63 Unit Price incl. VAT

14

Bouchon purge

GU19206501

£16,73 Unit Price incl. VAT

15

Garniture

GU10528900

£4,45 Unit Price incl. VAT

16

Bague

GU19015020

£10,75 Unit Price incl. VAT

17

Gasket ring 40x56x8/7

GU90404059

£29,57 Unit Price incl. VAT

18

Roller bearing 30x62x16

GU92234730

£103,82 Unit Price incl. VAT

19

Roulement à rouleaux 20x52x15

GU92234720

£132,65 Unit Price incl. VAT

20

Roller bearing 17x40x12

GU92234017

£106,79 Unit Price incl. VAT

21

Disc

GU04205100

£7,20 Unit Price incl. VAT

22

Roulement à billes 20x52x17

GU92201423

£29,56 Unit Price incl. VAT

23

Roulement 25x52x15

GU92201225

£52,09 Unit Price incl. VAT

24

Roulement à billes 40x68x15

GU92201141

£47,04 Unit Price incl. VAT

25

Gasket ring 42x56x7

GU90404255

£30,28 Unit Price incl. VAT

26

Vis TCEI M6X45

GU98680345

£1,88 Unit Price incl. VAT

26

Vis M6X40

GU98680340

£1,26 Unit Price incl. VAT

27

Vis M8X45

GU98680445

£1,02 Unit Price incl. VAT

28

Vis TCEI M8x40

GU98680440

£1,02 Unit Price incl. VAT

29

Vis M8x30

GU98682430

£0,70 Unit Price incl. VAT

29

Vis TCEI M8x35

GU98680435

£4,98 Unit Price incl. VAT

30

Vis M6X30

GU98682330

£1,26 Unit Price incl. VAT

31

Hex socket screw M6x35

GU98680335

£0,35 Unit Price incl. VAT

32

Rondelle 6,4x12x1,2

GU95008306

£0,58 Unit Price incl. VAT

33

Bouchon

GU93180245

£2,63 Unit Price incl. VAT

34

Complete gearbox black

GU01991590

Not Available

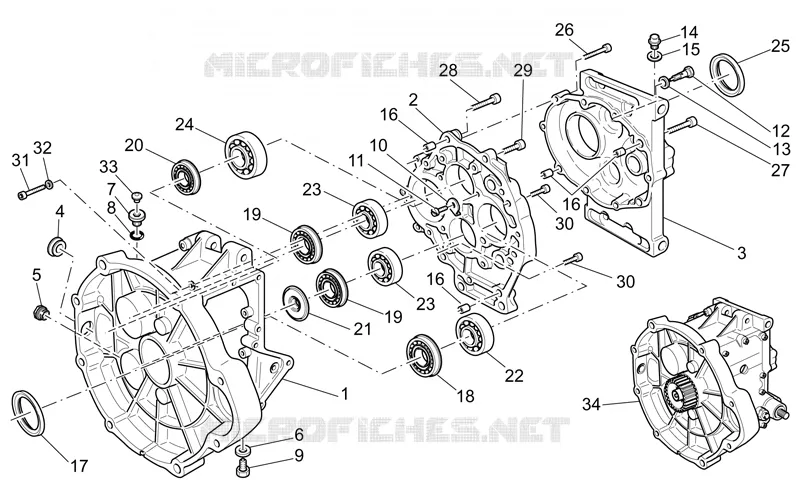

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
