Engine displacement
125
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Rear body I
6
Parts Diagram
Parts Catalog
RH controls
by
Water cooler
Rear body I
1
2
3
4
5
5
6
7
7
8
8
9
1
Inspection cover
AP8168878
Not Available
2
Undersaddle,mer. grey
AP8149551
Not Available
2
Undersaddle, green
AP8168752
Not Available
2
Undersaddle blue
AP8168828
Not Available
3
Die cut protection
AP8117241
Not Available
4
Fuel tank cover
AP8168948
Not Available
5
Vis
AP8152345
£1,46 Unit Price incl. VAT
6
Rondelle pour arbres
AP8150450
£2,20 Unit Price incl. VAT
7
Vis bride
AP8152273
£1,88 Unit Price incl. VAT
8
Self-locking nut M5
AP8152306
Not Available
9
Tige fixation carène
AP8144109
£10,37 Unit Price incl. VAT

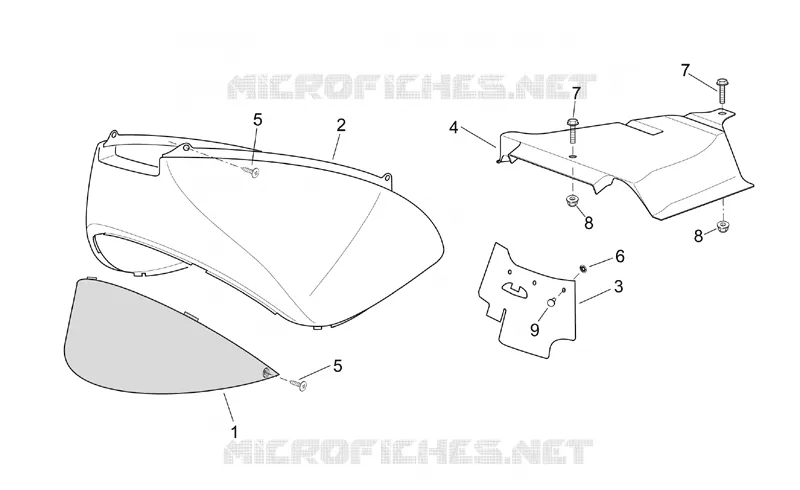

Find the detailed Rear body I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
