Parts Catalog
Swing arm and rear shock absorber
6
Parts Diagram
Parts Catalog
Driven shaft
by
Injection electrical system
Swing arm and rear shock absorber
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
16
1
Fourche ar.
GU01540230
£256,13 Unit Price incl. VAT
2
Roulement à billes
GU92218418
£42,37 Unit Price incl. VAT
3
Pivot
GU01547060
£61,82 Unit Price incl. VAT
4
Ecrou
GU01547860
£43,52 Unit Price incl. VAT
5
Shock absorber "Ohlins"
GU01550291
Not Available
5
Amortisseur
GU02550201
£421,18 Unit Price incl. VAT
6
Vis
GU98083670
£7,50 Unit Price incl. VAT
7
Rondelle 12,2X20X2
GU95008213
£1,98 Unit Price incl. VAT
8
Ecrou
GU92640513
£4,92 Unit Price incl. VAT
9
Ecrou
GU92640512
£2,33 Unit Price incl. VAT
10
Vis inférieure
GU98680616
£39,20 Unit Price incl. VAT
11
Support plate
GU01557985
Not Available
12
Collier
GU02107300
£12,64 Unit Price incl. VAT
13
Vis bride M6X16
GU98210616
£3,95 Unit Price incl. VAT
14
Ecrou M6x1
GU92630106
£5,03 Unit Price incl. VAT
15
Caoutchouc
GU00823915045
£18,92 Unit Price incl. VAT
16
Rondelle 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT

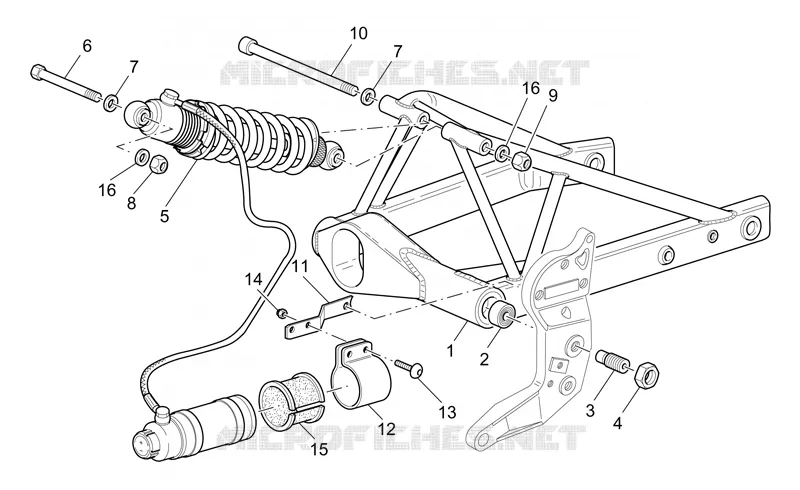

Find the detailed Swing arm and rear shock absorber MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
