1
Engine displacement
1100
2
Model
V11
3
Year
2004
4
Trim
V 11 Cafè - Ballabio
5
Parts Catalog
Generator - Regulator
6
Parts Diagram
Parts Catalog
Crankshaft cpl.
by
Throttle body
Generator - Regulator
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
1
Generator
GU32712410
Not Available
1
Generator
GU37712405
Not Available
2
Regulator
GU03703870
£123,67 Unit Price incl. VAT
3
Calotte av.
GU29711460
£60,55 Unit Price incl. VAT
4
Vis
GU98680265
£2,47 Unit Price incl. VAT
5
Rondelle 5,9X3X0,8
GU29217960
£1,20 Unit Price incl. VAT
6
Ecrou
GU92606516
£10,73 Unit Price incl. VAT
7
Washer 16,25x24,5x5
GU30714201
£9,26 Unit Price incl. VAT
8
Joint torique 17,86X2,62
GU90706178
£0,98 Unit Price incl. VAT
9
Entretoise
GU37712306
£33,71 Unit Price incl. VAT
10
Clavette
GU91600450
£1,93 Unit Price incl. VAT
11
Calotte arriere chromée
GU29711960
£60,55 Unit Price incl. VAT
12
Vis M6x20
GU98682320
£1,26 Unit Price incl. VAT
13
Rondelle 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
14
Washer 6,4x10x0,7
GU14217901
Not Available
15
Caoutchouc
GU19007700
£4,44 Unit Price incl. VAT
16
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
17
Main wiring harness
GU01747191
£546,48 Unit Price incl. VAT
17
Câblage principal
GU01747190
£867,05 Unit Price incl. VAT

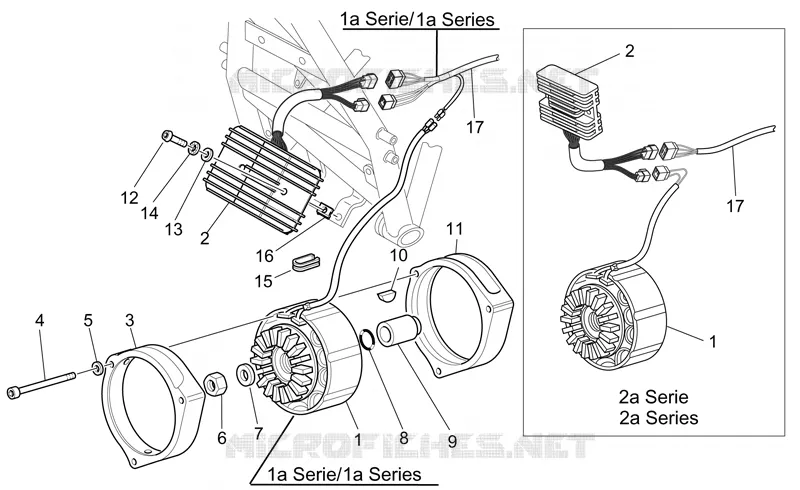

Find the detailed Generator - Regulator MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
