1
Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Cafè - Ballabio
5
Parts Catalog
Gear box selector
6
Parts Diagram
Parts Catalog
Oil filters
by
Saddle - Rear fairing
Gear box selector
1
2
2
3
4
5
6
7
8
9
10
11
11
12
13
13
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
Gearshift black
GU01201691
Not Available
1
Gearshift black
GU01201690
Not Available
2
Axe de fourchette
GU04232400
£28,57 Unit Price incl. VAT
3
Fourchette 1a
GU04230500
£51,91 Unit Price incl. VAT
4
Fork 2a
GU04230800
Not Available
5
Fourchette 3a-5a
GU04232600
£489,89 Unit Price incl. VAT
6
Fourchette 4a-6a
GU04231200
£64,61 Unit Price incl. VAT
7
Joint 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
8
Capteur POINT MORT
GU19207220
£88,42 Unit Price incl. VAT
9
Axe excentrique
GU04237800
£16,38 Unit Price incl. VAT
10
Ecrou bas M12x1,25
GU92606512
£2,04 Unit Price incl. VAT
11
Bague 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
12
Selecteur 2a-4a-6a
GU01236930
£109,61 Unit Price incl. VAT
13
Bague seeger
GU90271012
£0,89 Unit Price incl. VAT
14
Selector 1a-3a-5a
GU01233630
£792,82 Unit Price incl. VAT
15
Rouleau
GU92296745
£1,55 Unit Price incl. VAT
16
Plaquette
GU04237500
£35,81 Unit Price incl. VAT
17
Levier
GU04238600
£90,78 Unit Price incl. VAT
18
Roller
GU04234700
Not Available
19
Circlip
GU90271008
£0,89 Unit Price incl. VAT
20
Goujon de levier
GU01234660
£15,60 Unit Price incl. VAT
20
Lever pin
GU04234600
£20,15 Unit Price incl. VAT
21
Spring
GU04238200
Not Available
22
Rondelle
GU95008308
£1,26 Unit Price incl. VAT
23
Ecrou M8x1,25
GU92606208
£0,94 Unit Price incl. VAT
24
Griffe
GU01235130
£108,26 Unit Price incl. VAT
25
Spring
GU04238300
£12,92 Unit Price incl. VAT
26
Bague seeger
GU90280007
£1,26 Unit Price incl. VAT
27
Arbre sélecteur
GU01237032
£23,53 Unit Price incl. VAT
28
Spring
GU04239200
Not Available
29
Vis TCEI M6x30
GU98680330
£2,48 Unit Price incl. VAT
30
Bague d'étanchéité
GU90401526
£10,73 Unit Price incl. VAT
31
Hex socket screw M6x35
GU98680335
£0,35 Unit Price incl. VAT
32
Adjustment eccentric
GU01234030
£12,59 Unit Price incl. VAT
33
Ecrou M8x1,25
GU92606208
£0,94 Unit Price incl. VAT
34
Rondelle 8,4X15X1,8
GU95008208
£1,27 Unit Price incl. VAT
35
Plaque
GU01236160
£41,46 Unit Price incl. VAT
36
Vis M6x14
GU98280614
£1,68 Unit Price incl. VAT

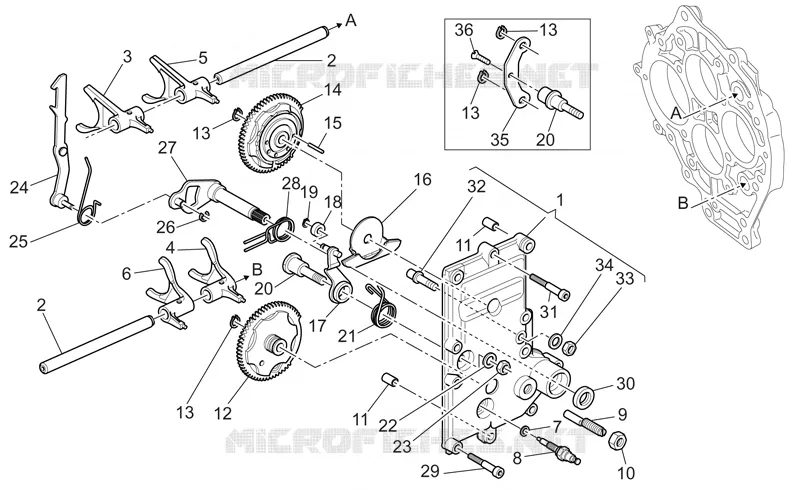

Find the detailed Gear box selector MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
