Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Rear wheel
by
Primary gear shaft
Fuel vapour recover system
1
2
3
4
5
5
5
5
5
5
6
7
7
7
8
8
8
9
10
11
12
13
13
14
15
15
16
17
18
19
1
Fuel tank, black
GU01100284
Not Available
1
Fuel tank, silver/red
GU01100289
Not Available
1
Fuel tank grey
GU01100283
Not Available
1
Réservoir rouge
GU89000496
£980,65 Unit Price incl. VAT
1
Fuel tank cpl. bronze
GU01100281
Not Available
2
Fuel tank central insulation
GU01103730
Not Available
3
LH heat protection
GU01103831
£25,81 Unit Price incl. VAT
4
Panneau thermofuge dte
GU01103832
£51,58 Unit Price incl. VAT
5
Hose clip 11,5x6
GU29108550
Not Available
6
Oil breather valve
GU29104985
Not Available
7
pipe SAEJ30R76X121/4"
GU00823956060
£13,73 Unit Price incl. VAT
8
Collier D9
GU61108500
£0,96 Unit Price incl. VAT
9
TUYAU
GU00823956080
£45,66 Unit Price incl. VAT
10
Collier 7,6x380
GU93304360
£8,03 Unit Price incl. VAT
11
Raccord 3 voies
GU29106660
£10,33 Unit Price incl. VAT
12
Filtre à charbon
GU01116031
£189,56 Unit Price incl. VAT
13
Raccord
GU30115220
£46,73 Unit Price incl. VAT
14
Collier
GU28157950
£2,64 Unit Price incl. VAT
15
DURITE RENIFLARD
GU00823956050
£22,76 Unit Price incl. VAT
16
Maintenance
GU01424632
Not Available
17
Isolant avant reservoir
GU01103731
£48,00 Unit Price incl. VAT
18
Bracket
GU01439230
Not Available
19
Tuyau d'aspiration
GU01119230
£60,40 Unit Price incl. VAT

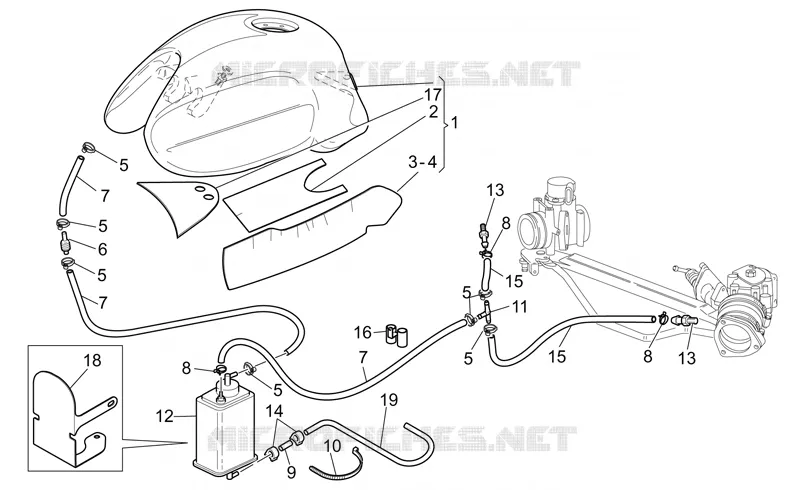

Find the detailed Fuel vapour recover system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
