Engine displacement
1100
2
Model
V11
3
Year
2003
4
Trim
V 11 Cafè - Ballabio
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Transmission cage
by
Specific tools I
Air box
19
17
18
16
15
15
14
14
14
13
12
12
11
10
9
8
7
6
5
5
4
3
2
1
20
1
Air box
GU01114031
£381,12 Unit Price incl. VAT
2
Filtre air
GU30113600
£22,42 Unit Price incl. VAT
3
Couvercle filtre
GU01113490
£49,61 Unit Price incl. VAT
4
Hose
GU37114806
£14,45 Unit Price incl. VAT
5
Collier
GU93305040
£10,12 Unit Price incl. VAT
6
Plaque d.
GU01116730
£13,76 Unit Price incl. VAT
7
Plaque g.
GU01116731
£13,33 Unit Price incl. VAT
8
Front plate
GU01114130
Not Available
9
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
10
screw M6x80
GU98082380
Not Available
11
Vis M6x30
GU98084330
£1,26 Unit Price incl. VAT
12
Vis M6x12
GU98350312
£2,36 Unit Price incl. VAT
13
Vis TBEI M5X10
GU98350210
£1,26 Unit Price incl. VAT
14
Rondelle 6,15x11x0,8
GU95008206
£2,48 Unit Price incl. VAT
15
Durite d'admission
GU02116901
£47,70 Unit Price incl. VAT
16
TUYAU
GU00823956080
£45,66 Unit Price incl. VAT
17
Vis percée
GU95990084
£39,22 Unit Price incl. VAT
18
Garniture
GU01154230
£2,34 Unit Price incl. VAT
19
Hand cone-type
GU01114400
£8,32 Unit Price incl. VAT
20
Raccord
GU30107401
£52,03 Unit Price incl. VAT

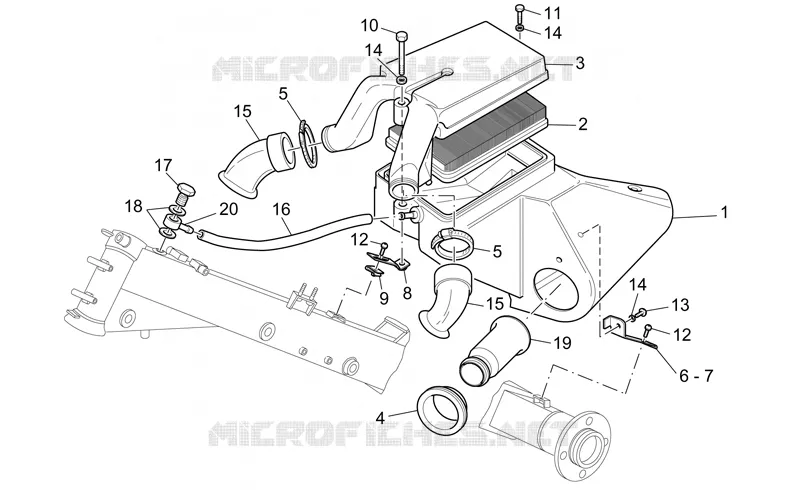

Find the detailed Air box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
