Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Oil radiator
by
Internal fuel pump
Clutch
1
2
3
3
4
5
6
7
8
9
10
11
12
13
1
Ressort embrayage
GU04084100
£8,23 Unit Price incl. VAT
2
Disque
GU30082900
£284,60 Unit Price incl. VAT
3
Clutch plate complete
GU03084400
Not Available
4
Disque interclaire
GU12082300
£76,38 Unit Price incl. VAT
5
Rondelle
GU04082800
£59,83 Unit Price incl. VAT
6
Tige
GU01085730
£25,39 Unit Price incl. VAT
7
Bague d'étanchéité 8X16X7
GU90400816
£4,32 Unit Price incl. VAT
8
Disque
GU04086000
£36,19 Unit Price incl. VAT
9
Thrust bearing
GU12087001
Not Available
10
Clutch control cylinder
GU04086100
£23,10 Unit Price incl. VAT
11
Joint torique 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
12
Vis TSPEI M6X18
GU98257618
£0,98 Unit Price incl. VAT
13
Clutch command cylinder
GU01086330
Not Available

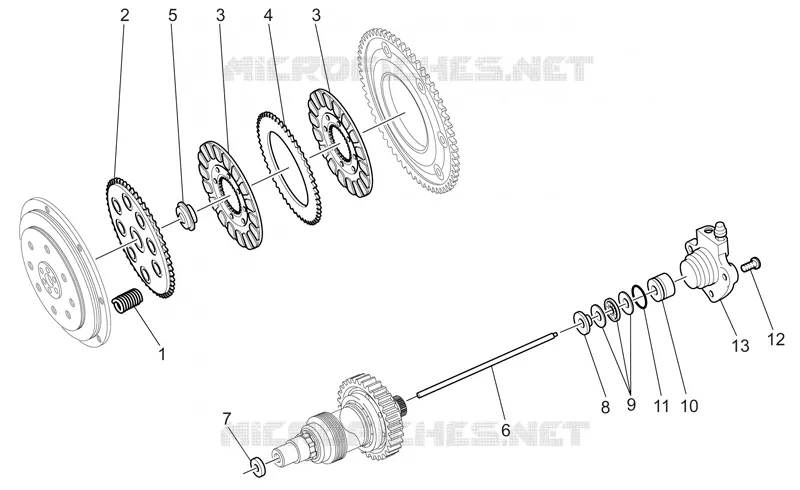

Find the detailed Clutch MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
