Electrical system for MOTO GUZZI LAVERDA SCARABEO V 11 Cafè - Ballabio from 2004

Free shipping for all orders to United Kingdom over £150! See conditions.

Electrical system

1

Main wiring harness

GU01747191

£546,48 Unit Price incl. VAT

1

Câblage principal

GU01747190

£867,05 Unit Price incl. VAT

2

Main wiring harness

GU01747280

Not Available

3

Battery 12V-11Ah

GU02704550

Not Available

3

Battery 12V-13A

GU01704501

£414,91 Unit Price incl. VAT

4

Fixing snap

GU14102600

£16,15 Unit Price incl. VAT

5

Adhesive gasket

GU29579460

£0,70 Unit Price incl. VAT

6

Battery holder

GU28707050

£27,20 Unit Price incl. VAT

7

Frame

GU01418230

Not Available

8

Vis M6X14

GU98084314

£1,26 Unit Price incl. VAT

9

Rondelle 6,15x11x0,8

GU95008206

£2,48 Unit Price incl. VAT

10

Tampon

GU19705900

£4,74 Unit Price incl. VAT

11

Cablage

GU01748431

£39,02 Unit Price incl. VAT

11

Wire

GU01748491

Not Available

12

Capuchon

GU03707140

£3,88 Unit Price incl. VAT

13

Câblage masse-batterie

GU02747901

£22,31 Unit Price incl. VAT

13

Ground-battery lead

GU01747991

Not Available

14

Fuse holder box

GU01743030

£33,34 Unit Price incl. VAT

15

Fuse 5A

GU28742558

£0,70 Unit Price incl. VAT

15

Fusible 10A

GU28742559

£1,15 Unit Price incl. VAT

15

Fuse 30A

GU28742562

Not Available

15

Fuse 15A

GU28742560

Not Available

16

Sticker "schema fusibili"

GU01945060

Not Available

17

screw

GU98230515

Not Available

18

Bush

GU01746630

Not Available

19

Caoutchouc

GU91551086

£8,08 Unit Price incl. VAT

20

Clignotement

AP8124235

£24,49 Unit Price incl. VAT

21

Collier

GU93304390

£2,06 Unit Price incl. VAT

22

Mini-relay A1001A402

GU01732560

£24,86 Unit Price incl. VAT

23

Relay shunt va.siem. A1001A403

GU01731760

£47,10 Unit Price incl. VAT

24

Collier 3,6x20,6

GU14609650

£1,02 Unit Price incl. VAT

25

Câble adaptateur

GU01757680

£32,95 Unit Price incl. VAT

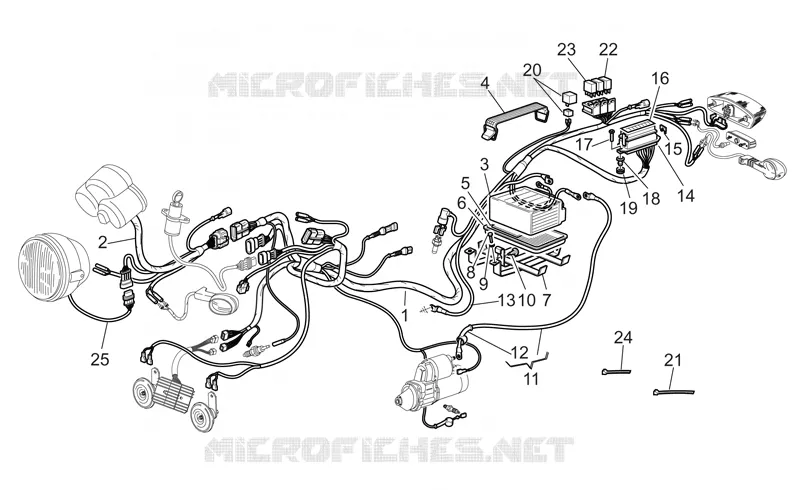

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
