Engine displacement
125
2
Model
SCARABEO
3
Year
2003
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Showa front fork - Hubs, sleeves
6
Parts Diagram
Parts Catalog
Cooling system
by
Fuel tank
Showa front fork - Hubs, sleeves
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
16
16
17
17
18
19
20
20
21
1
Tampon de fond
AP8123765
£17,51 Unit Price incl. VAT
2
O-ring
AP8123775
Not Available
3
Cover
AP8123761
Not Available
4
Ressort;
AP8123905
£15,16 Unit Price incl. VAT
5
Bague
AP8123776
£38,23 Unit Price incl. VAT
6
Shock absorber
AP8123906
Not Available
7
Ressort
AP8123764
£7,55 Unit Price incl. VAT
8
Sleeve
AP8123907
Not Available
9
Dust cover
AP8123767
Not Available
10
Bague de butée;
AP8123921
£3,48 Unit Price incl. VAT
11
Joint spi
AP8123769
£22,30 Unit Price incl. VAT
12
Oil seal washer
AP8123909
Not Available
13
Douille de coulissement;
AP8123910
£17,77 Unit Price incl. VAT
14
RH sleeve
AP8123911
Not Available
15
LH sleeve
AP8123912
Not Available
16
Washer
AP8203794
Not Available
17
Screw M8x30
AP8123774
Not Available
18
Vis
AP8203796
£12,31 Unit Price incl. VAT
19
Guard decal
AP8167127
Not Available
20
Catadioptre;
AP8224342
£15,17 Unit Price incl. VAT
21
Guide-câble
AP8121856
£13,28 Unit Price incl. VAT

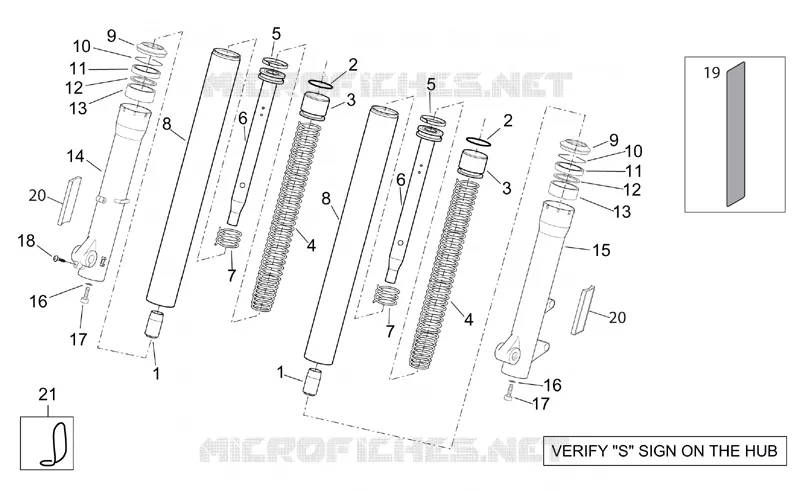

Find the detailed Showa front fork - Hubs, sleeves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
