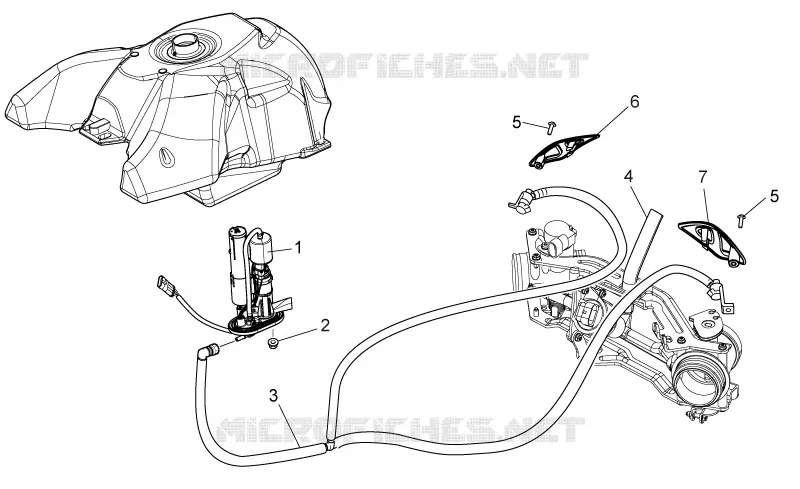

Fuel supply
1
2
3
4
5
5
6
7
1
Fuel pump cpl.
978138
£1 300,48 Unit Price incl. VAT
2
Self-locking nut M5
AP8152306
Not Available
3
Fuel pipe, cpl.
883043
Not Available
4
Breather pipe
883633
£39,10 Unit Price incl. VAT
5
Hex socket screw
GU98680222
£2,47 Unit Price incl. VAT
6
RH protection
883092
£30,61 Unit Price incl. VAT
7
LH protection
883093
£30,61 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
