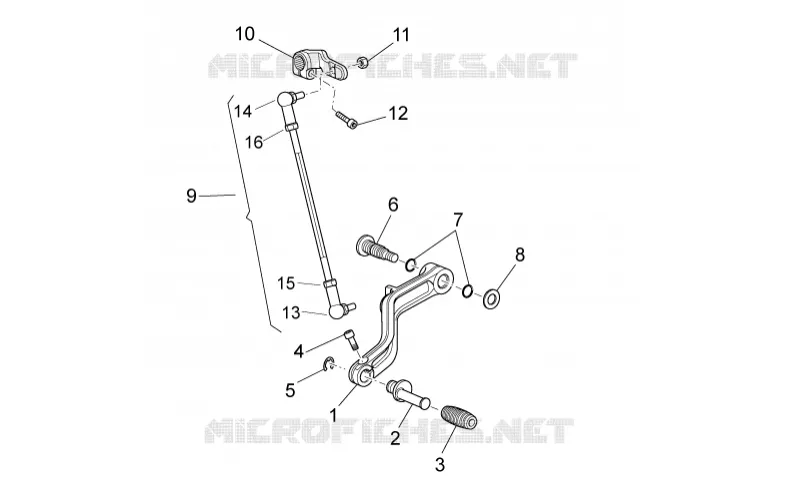

Gear lever
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Gear lever
GU06250900
£188,70 Unit Price incl. VAT
2
Brake lever pin
AP8121221
£22,68 Unit Price incl. VAT
3
Lever rubber
AP8120912
£3,68 Unit Price incl. VAT
4
Hex socket screw M6x16
GU98682316
£1,26 Unit Price incl. VAT
5
Circlip d9
AP8150462
£1,39 Unit Price incl. VAT
6
Rear brake lever pin
AP8121223
Not Available
7
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
8
Washer 10,2X18X2
GU95008210
£0,85 Unit Price incl. VAT
9
Change gear tie rod compl.
883044
£70,44 Unit Price incl. VAT
10
Lever
GU05256930
£141,68 Unit Price incl. VAT
11
Nut M6
GU92630707
£2,04 Unit Price incl. VAT
12
Hex socket screw M6x20
GU98682320
£1,26 Unit Price incl. VAT
13
Ball joint
GU32258110
£22,43 Unit Price incl. VAT
14
Ball joint
GU32258010
£25,24 Unit Price incl. VAT
15
Nut M6
GU92609206
£2,47 Unit Price incl. VAT
16
Nut M6
GU03256800
£1,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
