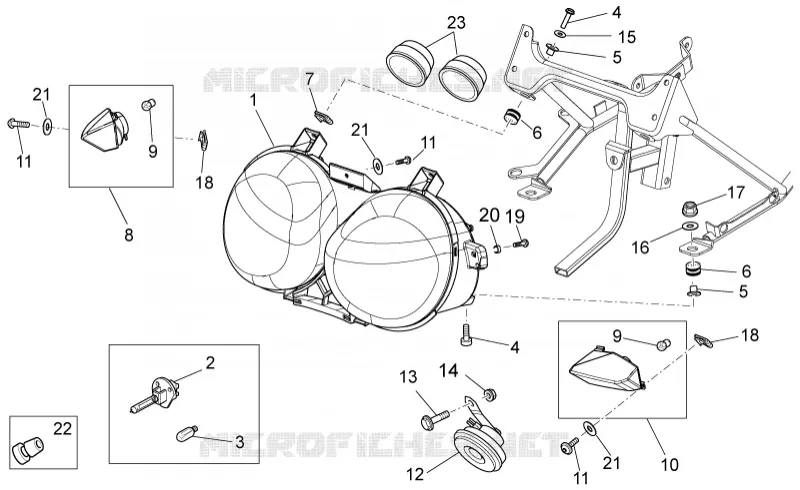

Headlight/Horn
1
2
3
4
4
5
5
6
6
7
8
9
9
10
11
11
11
12
13
14
15
16
17
18
18
19
20
21
21
21
22
23
1
Headlight
978450
Not Available
2
Lamp H4 12V-60/55W
292723
£18,91 Unit Price incl. VAT
3
Lamp 12V-5W
292022
Not Available
4
Hex socket screw M5x25
GU98680225
£5,28 Unit Price incl. VAT
5
T bush
AP8221023
£1,64 Unit Price incl. VAT
6
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
7
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
8
RH front turn indicator
978428
£39,64 Unit Price incl. VAT
9
Lamp 12V-10W
584332
£3,77 Unit Price incl. VAT
10
LH front turn indicator
978427
£39,64 Unit Price incl. VAT
11
screw
GU98682116
£2,14 Unit Price incl. VAT
12
Horn
886178
£31,19 Unit Price incl. VAT
12
Electric hom L
883463
£41,35 Unit Price incl. VAT
13
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
14
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
15
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
16
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
17
Flanged nut
GU92650035
£2,35 Unit Price incl. VAT
18
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
19
screw M4x25
GU98680125
£4,98 Unit Price incl. VAT
20
Bush
GU91120507
£10,75 Unit Price incl. VAT
21
Washer 5,3x10x0,8
GU95008205
£1,26 Unit Price incl. VAT
22
Bulb socket
2R000006
£2,28 Unit Price incl. VAT
23
Front headlight guard
2R000007
£8,18 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
