Engine displacement
125
2
Model
SCARABEO
3
Year
2001
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Carburettor II
6
Parts Diagram
Parts Catalog
Kaifa front fork - Hubs, sleeves
by
Engine assembly
Carburettor II
1
2
3
4
5
6
7
8
9
10
11
12
1
Diaphragm
AP8106661
Not Available
2
Tuyau caoutchouc;
AP8144265
£11,63 Unit Price incl. VAT
3
Jet Needle
AP8106659
Not Available
4
Arrêt pointeau;
AP8106660
£9,68 Unit Price incl. VAT
5
Spring
AP8121392
Not Available
6
Cover
AP8106658
Not Available
7
screw
AP8152373
Not Available
8
Adjuster screw
CM151701
Not Available
9
Ressort;
AP8121393
£4,16 Unit Price incl. VAT
10
Rondelle
AP8152375
£1,15 Unit Price incl. VAT
11
O-ring
AP8123900
Not Available
12
Carburettor
AP8106859
Not Available
12
Carburettor
AP8106939
Not Available
12
Carburettor
AP8106639
Not Available
12
Carburettor
AP8106938
Not Available
12
Carburettor
AP8106804
Not Available
12
Carburettor
AP8106553
Not Available

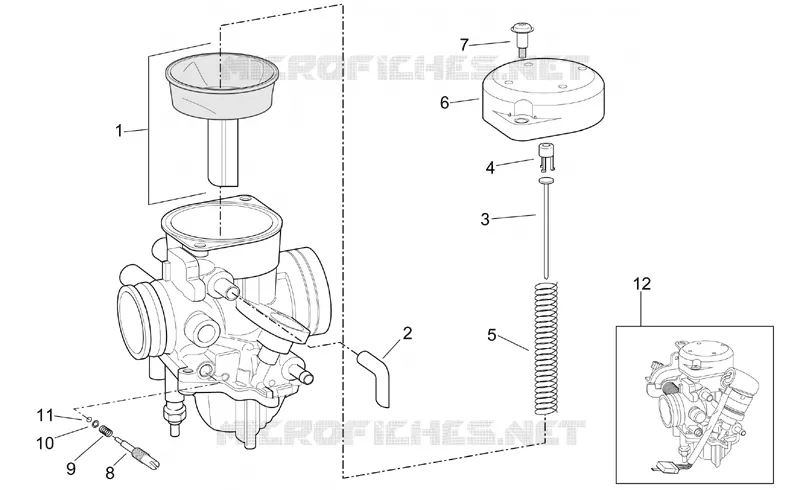

Find the detailed Carburettor II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
