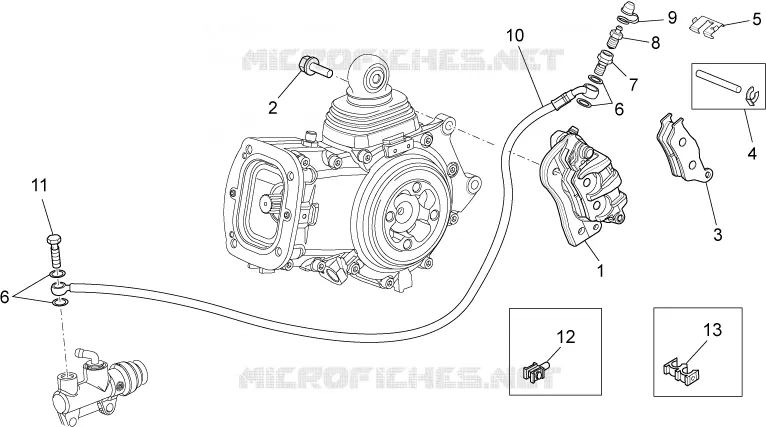

Rear brake caliper
1
2
3
4
5
6
6
7
8
9
10
11
12
13
1
Rear brake caliper, black
978414
£354,25 Unit Price incl. VAT
2
Screw w/ flange
AP8152320
£3,11 Unit Price incl. VAT
3
Pads pair
GU05654630
£108,48 Unit Price incl. VAT
4
Pin+split pin
GU05659130
£18,64 Unit Price incl. VAT
5
Spring
GU05659030
£27,31 Unit Price incl. VAT
6
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
7
screw
AP8133597
Not Available
8
Air bleed valve
AP8133595
£12,07 Unit Price incl. VAT
9
Bleed valve cap
AP8113070
£13,98 Unit Price incl. VAT
10
Rear brake hose
883007
£50,76 Unit Price incl. VAT
11
Oil pipe screw *
AP8133962
£9,94 Unit Price incl. VAT
12
Cable-guide hook
AP8202238
£6,26 Unit Price incl. VAT
13
Cable-guide D8
AP8201808
£3,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
