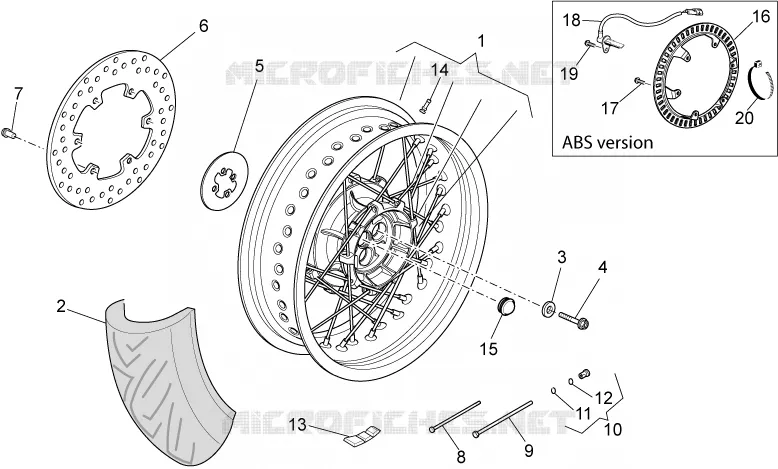

Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Rear wheel 4,25X17"
883433
£3 033,25 Unit Price incl. VAT
1
Rear wheel 5,5x17"
978849
Not Available
2
Tyre
0000000
Not Available
3
Conical bush
GU05632730
£8,03 Unit Price incl. VAT
4
Screw w/ flange M12x65
GU97202665
£18,66 Unit Price incl. VAT
5
Dust cover ring
977056
£11,42 Unit Price incl. VAT
6
Rear brake disc
GU05635730
£92,17 Unit Price incl. VAT
7
screw
GU30611460
£4,01 Unit Price incl. VAT
8
Short spoke
978815
£10,01 Unit Price incl. VAT
9
Long spoke
978816
£7,03 Unit Price incl. VAT
10
Nipples L=34
978810
£13,21 Unit Price incl. VAT
10
Nipples L=36
883287
£7,03 Unit Price incl. VAT
11
Snap ring
978811
£2,47 Unit Price incl. VAT
12
O-ring OR2025
GU90706061
£2,47 Unit Price incl. VAT
13
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
14
Tubeless tyre valve
978814
£23,30 Unit Price incl. VAT
14
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
15
Cover
978301
£6,60 Unit Price incl. VAT
16
Phonic wheel
GU05681530
£110,93 Unit Price incl. VAT
17
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
18
Sensor
GU05683730
£160,07 Unit Price incl. VAT
19
Screw w/ flange
598839
£1,27 Unit Price incl. VAT
20
Fairlead
894704
£13,38 Unit Price incl. VAT
20
Hose clamp 2,4x92
GU49609601
£0,90 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
