Engine displacement
1200
2
Model
STELVIO
3
Year
2009
4
Trim
Stelvio- NTX - ABS
5

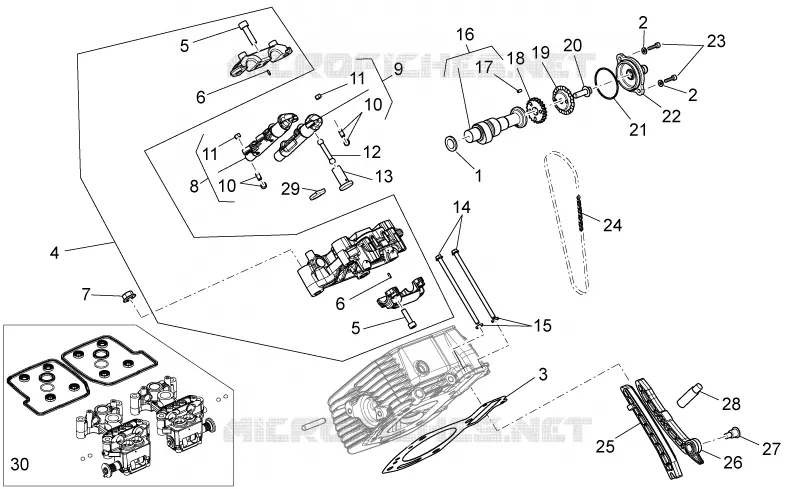

Parts Catalog
RH cylinder timing system (bowl)
6
Parts Diagram
Parts Catalog
Dashboard
by
Cylinder head - valves
RH cylinder timing system (bowl)
1
2
2
3
4
5
5
6
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
Spacer 1,10
CM162703
£12,54 Unit Price incl. VAT
1
Spacer 1,12
CM162704
£12,54 Unit Price incl. VAT
1
Spacer 1,14
CM162705
£13,16 Unit Price incl. VAT
1
Spacer 1,08
CM162702
£13,16 Unit Price incl. VAT
1
Spacer 1,06
CM162701
£13,16 Unit Price incl. VAT
2
Spring washer 5,3X10X0,5
GU95129100
£0,58 Unit Price incl. VAT
3
Cylinder head gasket 0,85 mm
874622
£80,96 Unit Price incl. VAT
3
Cylinder head gasket 0,65 mm
874621
£72,59 Unit Price incl. VAT
3
Cylinder head gasket 1,05 mm
976311
£83,30 Unit Price incl. VAT
4
RH.Rocker arm support
873426
Not Available
5
screw M8x30
015792
Not Available
6
Pin D. 2,5
872759
£16,14 Unit Price incl. VAT
7
Nut M10x1,25 6H
833520
£0,76 Unit Price incl. VAT
8
Right exhaust left intake rocker
B013603
Not Available
8
Rocker arm assy.
976359
Not Available
9
Left exhaust right intake rocker
B013605
Not Available
9
Rocker arm assy.
976360
Not Available
10
Adjuster screw
879707
£42,85 Unit Price incl. VAT
10
Adjuster screw
873850
Not Available
11
Nut
484819
£1,33 Unit Price incl. VAT
11
Rocker arm adjuster nut
879916
£7,85 Unit Price incl. VAT
12
Rocker arm rod
873631
£32,44 Unit Price incl. VAT
12
Rocker arm rod
B015681
£32,44 Unit Price incl. VAT
13
Bucket tappet for hydraulic tappet
B014603
£58,15 Unit Price incl. VAT
14
Screw w/ flange M6x120
487444
£22,22 Unit Price incl. VAT
15
Plain washer 12x6,1x2
976674
£5,14 Unit Price incl. VAT
16
Camshaft
8776384
Not Available
17
Pin
976589
£0,66 Unit Price incl. VAT
18
Timing gear
976350
£269,21 Unit Price incl. VAT
19
sheet oil breather
874601
Not Available
20
Screw w/ flange
843060
Not Available
21
O-ring 44.17X1.78
976584
£6,26 Unit Price incl. VAT
22
Breather cover cpl.
976690
£55,38 Unit Price incl. VAT
23
screw
GU98622214
£0,98 Unit Price incl. VAT
24
Camshaft chain
976341
£116,12 Unit Price incl. VAT
25
Chain guide plate
976338
£15,74 Unit Price incl. VAT
26
Chain tensioner sliding block
976337
£15,78 Unit Price incl. VAT
27
Spacer screw
974228
£12,19 Unit Price incl. VAT
28
RH chain tensioner
873689
£109,21 Unit Price incl. VAT
29
Plate
874805
£44,10 Unit Price incl. VAT
30
Distribution transformation kit "B"
1A002063
Not Available
30
Distribution transformation kit "C"
1A002082
Not Available
30
Distribution transformation kit "A"
1A002060
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
