Engine displacement
125
2
Model
SCARABEO
3
Year
2001
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Front body - Front fairing
by
Central semi-crankcase
Cooling system
1
2
3
4
5
6
6
6
6
7
8
9
10
11
11
12
13
14
15
16
1
Expansion tank support
AP8134487
Not Available
2
Rad cap w/ vent
AP8201463
Not Available
3
Expansion tank
AP8139255
Not Available
4
Groupe thermostat
AP8102614
£59,99 Unit Price incl. VAT
5
Tube de culasse radiateur
AP8144115
£120,25 Unit Price incl. VAT
6
Collier
AP8102732
£8,94 Unit Price incl. VAT
7
Valve-cooler tube
AP8144116
Not Available
8
Hose clip D25x35
AP8102810
Not Available
9
Motor-pump valve tube
AP8144120
Not Available
10
Tuyau reniflard radiateur
AP8144506
£28,10 Unit Price incl. VAT
10
Tuyau à texture en caoutchouc;
AP8220450
£21,42 Unit Price incl. VAT
11
Collier clic
AP8102764
£3,25 Unit Price incl. VAT
11
Collier clic, blanc
AP8102765
£6,40 Unit Price incl. VAT
12
Vis bride
AP8152272
£1,88 Unit Price incl. VAT
13
Clip M6
AP8102376
Not Available
14
Collier
AP8101573
£2,95 Unit Price incl. VAT
15
Rondelle
AP8150015
£1,88 Unit Price incl. VAT
16
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT

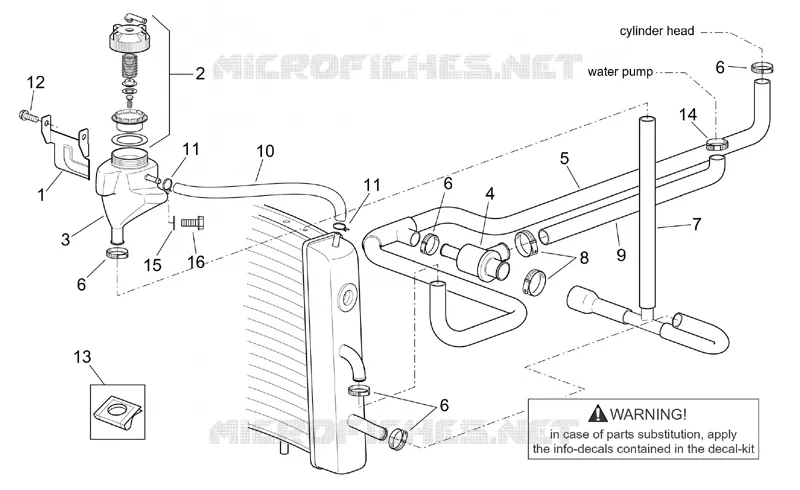

Find the detailed Cooling system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
