1
Engine displacement
125
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Dashboard
6
Parts Diagram
Parts Catalog
Central semi-crankcase
by
Front body - Front fairing

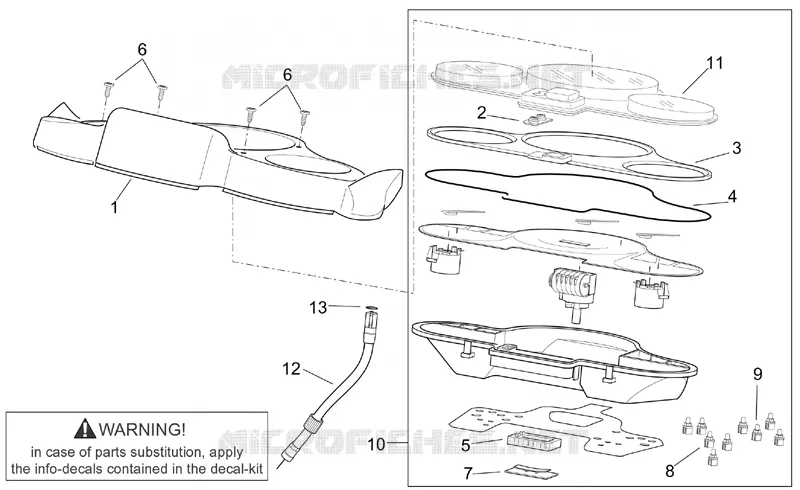

Dashboard
1
2
3
4
5
6
6
7
8
9
10
11
12
13
1
Dashboard panel, grey
AP8168086
Not Available
1
Dashboard panel, silver
AP8158979
Not Available
1
Dashboard panel, grey
AP8158176
Not Available
1
Dashboard panel, s.grey
AP8139258
£72,79 Unit Price incl. VAT
1
Dashboard panel, grey
AP8178917
Not Available
2
Clock rubber
AP8144268
£13,69 Unit Price incl. VAT
3
Shield
AP8124750
Not Available
4
Gasket
AP8144267
Not Available
5
Digital clock
AP8212406
£89,44 Unit Price incl. VAT
6
Self-tapping screw
AP8150444
£1,27 Unit Price incl. VAT
7
Clock bottom
AP8124751
Not Available
8
Lampholder, complete 12V-1,2W
AP8212407
£16,45 Unit Price incl. VAT
9
Lampholder, complete
AP8212408
£16,15 Unit Price incl. VAT
10
Dashboard complete
AP8124511
£94,61 Unit Price incl. VAT
10
Dashboard complete
AP8124687
Not Available
10
Dashboard complete
AP8127329
Not Available
10
Dashboard complete
AP8124994
Not Available
11
Transparent protection
AP8124749
Not Available
11
Transparent protection
AP8127789
£42,67 Unit Price incl. VAT
12
Odometer cable
AP8114357
Not Available
13
O-ring 115
AP8220177
£0,08 Unit Price incl. VAT

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
