Engine displacement
150
2
Model
SCARABEO
3
Year
1999
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Fuel tank - USA
6

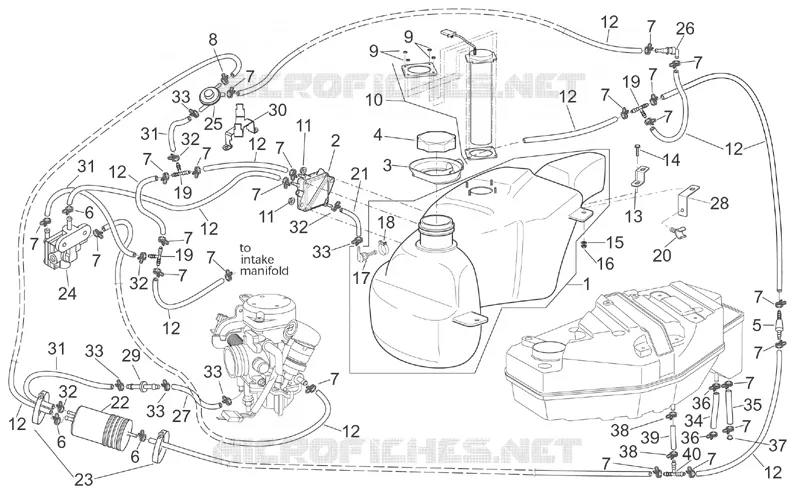

Parts Diagram
Parts Catalog
Frame
by
Front fork - Stem base
Fuel tank - USA
1
2
3
4
5
6
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
8
9
9
10
11
11
12
12
12
12
12
12
12
12
12
12
13
14
15
16
17
18
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
32
32
32
33
33
33
33
33
34
35
36
36
37
38
38
39
40
1
Fuel tank
AP8149309
Not Available
2
Fuel pump
AP8102408
£128,72 Unit Price incl. VAT
3
Fuel collector rubber
AP8144187
£12,23 Unit Price incl. VAT
4
Fuel filler cap
AP8201757
Not Available
5
Anti-return valve
AP8102741
Not Available
6
Hose clamp D11,3
AP8102378
£4,01 Unit Price incl. VAT
7
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
8
Hose clamp
AP8102520
£2,08 Unit Price incl. VAT
9
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
10
Fuel level sensor
AP8124512
£101,74 Unit Price incl. VAT
11
Self-locking nut M5
AP8152306
Not Available
12
Fuel pipe 5,5x10
AP8120952
Not Available
13
plate
AP8134526
Not Available
14
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
15
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
16
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
17
Union cpl.
AP8104071
£26,05 Unit Price incl. VAT
18
Hose clamp
AP8104072
Not Available
19
3-way union
AP8144303
£16,02 Unit Price incl. VAT
20
Cable-guide
AP8134186
£0,86 Unit Price incl. VAT
21
pipe 5x9
AP8220402
£28,99 Unit Price incl. VAT
22
Carbon filter
AP8102678
£41,63 Unit Price incl. VAT
23
Hose clamp d.76
AP8102688
£65,77 Unit Price incl. VAT
24
Fuel cock
AP8104096
£124,32 Unit Price incl. VAT
25
"Purge" valve
AP8106776
£76,50 Unit Price incl. VAT
26
"Roll-over" valve
AP8106824
£72,86 Unit Price incl. VAT
27
Pipe, grey 3x8
AP8120955
£18,10 Unit Price incl. VAT
28
Valve support clamp
AP8134728
Not Available
29
Choke hold
AP8121267
£29,15 Unit Price incl. VAT
30
Valve support clamp
AP8134698
Not Available
31
Breather pipe 4x8
AP8220263
Not Available
32
Hose clamp D9,1*
AP8102377
£2,45 Unit Price incl. VAT
33
Hose clamp D8
AP8120179
£1,27 Unit Price incl. VAT
34
Breather pipe
AP8120772
£20,96 Unit Price incl. VAT
35
Fuel pipe 6x10
AP8144038
£38,70 Unit Price incl. VAT
36
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
37
Plug
AP8120876
£8,23 Unit Price incl. VAT
38
Hose clip D.15,5x6,6
AP8101586
£3,97 Unit Price incl. VAT
38
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
39
Fuel pipe 5,5x10
AP8120952
Not Available
39
Breather pipe
AP8120956
£29,18 Unit Price incl. VAT
40
3-way union
AP8144303
£16,02 Unit Price incl. VAT
40
3-way union
AP8202154
Not Available
