Parts Catalog
Taillight
6
Parts Diagram
Parts Catalog
Headlight-Horn
by
Air filter
Taillight
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
16
17
18
18
19
20
21
22
23
24
25
1
Taillight
GU23740910
Not Available
2
Taillight lens
GU23741710
Not Available
3
Lampe (ou Ampoule) 12V/5-21W
GU93450224
£7,44 Unit Price incl. VAT
4
Rear headlight supp.
GU14474370
Not Available
5
Low nut M12x1,25
GU92602512
£1,57 Unit Price incl. VAT
6
RH turn indicator
GU29750662
Not Available
6
LH turn indicator
GU29750663
Not Available
7
Turn indicator lens
GU29753760
Not Available
8
Lampe (ou Ampoule) 12V-10W
GU93450127
£3,11 Unit Price incl. VAT
9
Notched washer
GU95021112
£0,65 Unit Price incl. VAT
10
Rubber protection
GU28475972
Not Available
11
Plate holder support
GU28475872
Not Available
12
screw
GU98054310
Not Available
13
Washer 6,15x11x0,8
GU95004206
Not Available
14
Washer
GU95129110
Not Available
15
Ecrou
GU92781062
£10,21 Unit Price incl. VAT
16
Vis
GU98230620
£2,04 Unit Price incl. VAT
17
Ecrou M6x1
GU92630206
£2,48 Unit Price incl. VAT
18
U-bolt
GU93301175
£2,60 Unit Price incl. VAT
19
Bracket
GU14468470
Not Available
20
screw
GU98054325
Not Available
21
Rubber protection
GU10475900
Not Available
22
Plate holder support
GU284746001
Not Available
23
VIS
GU98200410
£1,68 Unit Price incl. VAT
24
Ecrou M4x0,7
GU92630104
£0,96 Unit Price incl. VAT
25
Splash guard
GU27475461
Not Available

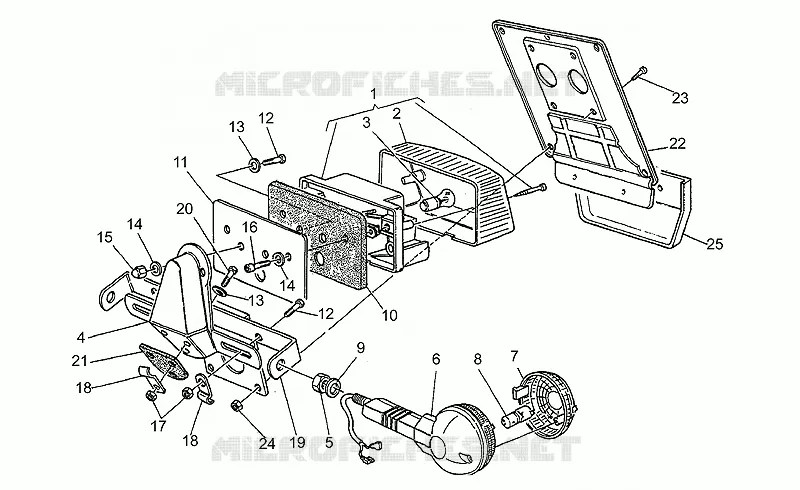

Find the detailed Taillight MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
