Parts Catalog
Battery
6
Parts Diagram
Parts Catalog
by
Body
Battery
1
2
3
4
5
6
7
8
9
9
10
10
11
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
Tyre
0000000
Not Available
2
Battery holder
GU28707050
£27,20 Unit Price incl. VAT
3
Generator SAPRISA
GU28712400
Not Available
4
screw
GU98620250
Not Available
5
Rondelle évent.
GU95021105
£1,26 Unit Price incl. VAT
6
screw
GU28712459
Not Available
7
Coil
GU14716503
Not Available
8
HT cable
GU17718350
Not Available
9
Capuchon
GU14717600
£3,04 Unit Price incl. VAT
10
Sparkplug cap
GU14717400
Not Available
11
Tyre
0000000
Not Available
14
Cover
GU14715420
Not Available
15
Fixing snap
GU28704850
Not Available
16
Fixing snap
GU14705500
£21,23 Unit Price incl. VAT
17
Bouchon
GU93180220
£3,68 Unit Price incl. VAT
18
Battery fixing snap
GU28704900
Not Available
19
CONNECTEUR
GU28712500
£10,27 Unit Price incl. VAT
20
Ecrou
GU92630105
£1,68 Unit Price incl. VAT
21
Voltage regulator SAPRISA
GU28703800
Not Available
22
screw
GU98202516
Not Available
23
Rondelle
GU95000205
£0,96 Unit Price incl. VAT
24
Contact breaker rev.kit
GU14719800
Not Available
25
Transfer case with advance
GU14715400
Not Available
26
Gear
GU14716200
Not Available
27
Pin
GU95510318
Not Available
28
Gasket
GU14716400
Not Available
29
Plaquette
GU14715700
£12,92 Unit Price incl. VAT
30
VIS
GU98052430
£1,58 Unit Price incl. VAT
31
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
32
Spacer
GU91180907
Not Available
33
Washer
GU95004208
£0,70 Unit Price incl. VAT
34
Toolkit
GU28929940
Not Available
35
Operator's handbook
GU14900071
Not Available
35
Operator's handbook
GU14900070
Not Available

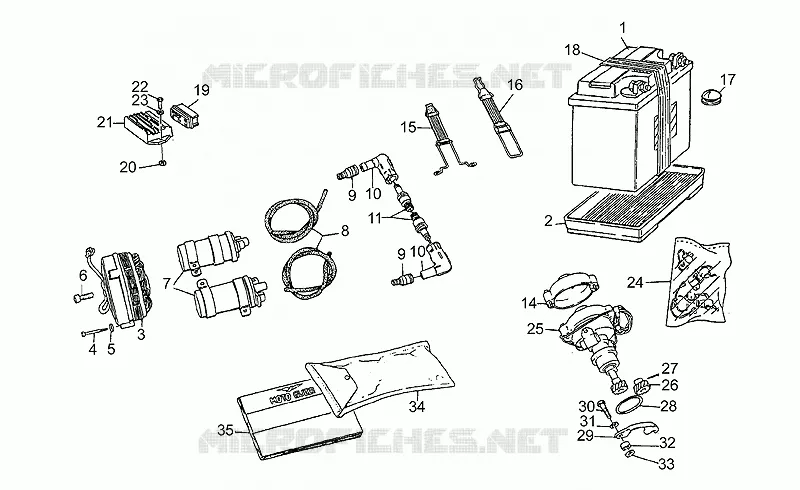

Find the detailed Battery MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
