Parts Catalog
Dashboard I
6
Parts Diagram
Parts Catalog
Bevel gear 1991-D
by
Dashboard II
Dashboard I
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
plate
GU14764070
Not Available
2
Commutator support
GU30782310
Not Available
3
Speedometer Mhp
GU14761570
£975,44 Unit Price incl. VAT
4
Speedometer transmission
GU28760410
Not Available
5
Tachometer
GU14767270
Not Available
6
Gear Z=14
GU14769200
Not Available
7
Transmission compte-tours
GU19768100
£49,90 Unit Price incl. VAT
8
Sheath
GU17762200
Not Available
9
Dashboard
GU17501570
£41,86 Unit Price incl. VAT
10
Spacer
GU91180721
£5,05 Unit Price incl. VAT
11
Silent-block
GU14502250
Not Available
12
Washer
GU95090142
Not Available
13
Washer
GU95001206
Not Available
14
screw
GU98290635
Not Available
15
Nut
GU92630107
Not Available
16
Cover
GU14500970
Not Available
17
Joint
GU00823932085
£9,79 Unit Price incl. VAT
18
Maintenance
GU14769155
Not Available
19
Lampholder
GU14768651
Not Available
20
Lamp
GU93450140
Not Available
21
screw
GU98830225
Not Available
22
Rondelle évent.
GU95021105
£1,26 Unit Price incl. VAT
23
Lampholder
GU14768650
Not Available
24
Lamp 12V-3W
GU93450120
Not Available
25
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
26
Vis
GU98230816
£1,58 Unit Price incl. VAT
27
screw
GU98230830
Not Available
28
Main switch
GU31735360
Not Available
29
Ring nut
GU19741336
Not Available
30
Gear Z5/11
GU14762510
Not Available
31
Pinion Z=5
GU12763300
Not Available
32
Chain ring
GU14766110
Not Available
33
Reset button
GU19762810
Not Available

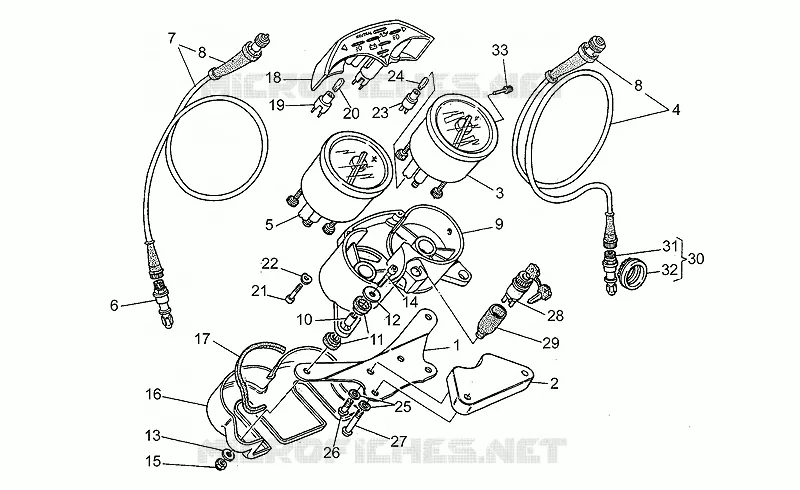

Find the detailed Dashboard I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
