1
Engine displacement
1000
2
Model
S
3
Year
1993
4
Trim
S 1000
5
Parts Catalog
Front wheel, spokes
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Front wheel, alloy
Front wheel, spokes
1
2
3
4
5
5
6
7
7
8
9
9
10
10
11
11
12
12
13
13
14
14
15
16
17
18
19
21
1
FRONT WHEEL
GU14610371
Not Available
2
Long spoke
GU28611633
£9,35 Unit Price incl. VAT
3
Nipple
GU28611733
£1,91 Unit Price incl. VAT
4
Contrepoids 20 gr.
GU12616102
£4,02 Unit Price incl. VAT
4
Contrepoids 15 gr.
GU12616101
£4,02 Unit Price incl. VAT
4
Contrepoids 30 gr.
GU12616103
£8,27 Unit Price incl. VAT
5
Flange
GU14620370
Not Available
6
Entretoise roulements
GU29615260
£48,64 Unit Price incl. VAT
7
Roulement à billes 20X47X14
GU92204220
£10,28 Unit Price incl. VAT
8
Bague seeger 47X50,5
GU90272047
£7,98 Unit Price incl. VAT
9
Outer brake disk
GU28613670
Not Available
10
Inner brake disk
GU14613770
Not Available
11
screw
GU98250825
Not Available
12
DOUILLE
GU28613560
£21,96 Unit Price incl. VAT
13
Ressort à godet
GU28618860
£3,80 Unit Price incl. VAT
14
Bague seeger
GU90271022
£1,42 Unit Price incl. VAT
15
screw
GU98052480
Not Available
16
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
17
Nut
GU92630508
£1,67 Unit Price incl. VAT
18
Pin
GU14614170
Not Available
19
Spacer
GU14615670
Not Available
20
Rondelle 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
21
Nut
GU29616450
£24,96 Unit Price incl. VAT

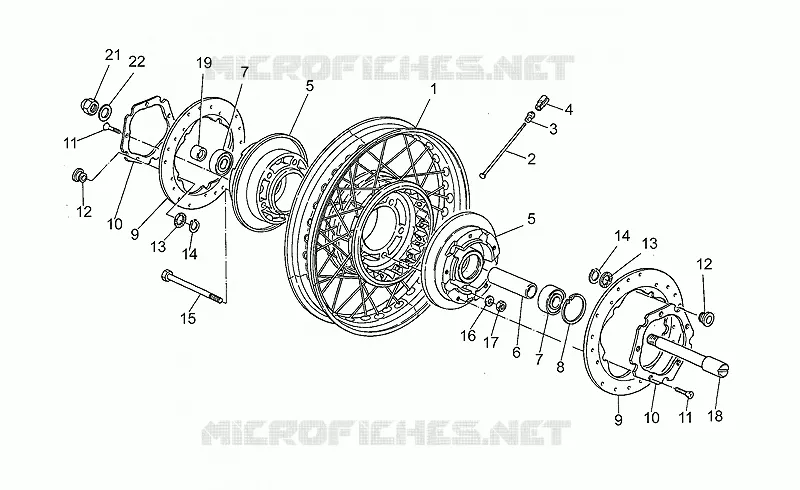

Find the detailed Front wheel, spokes MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
