Engine displacement
1000
2
Model
S
3
Year
1993
4
Trim
S 1000
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Secondary gear shaft 1991-D
by
Carburettors
Gear box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Bague
GU93601022
£48,91 Unit Price incl. VAT
2
Rondelle
GU95028022
£2,04 Unit Price incl. VAT
3
Clutch gear
GU30081810
£136,22 Unit Price incl. VAT
4
Joint torique 23,52x1,78
GU90706235
£1,60 Unit Price incl. VAT
5
Clutch shaft
GU14210702
£79,61 Unit Price incl. VAT
6
Joint torique 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
7
Oil-spreading washer 25,1x36x0,5
GU14218401
£12,85 Unit Price incl. VAT
8
Gear Z=17
GU14211110
Not Available
9
Hose
GU14211201
Not Available
10
Belleville spring
GU13211500
Not Available
11
Disc
GU14211600
Not Available
12
Demi-clavettes
GU12211700
£11,64 Unit Price incl. VAT
13
Cale
GU14219401
£21,67 Unit Price incl. VAT
14
Primary gear shaft
GU14210513
Not Available
15
Rondelle éventail sp.2
GU18211050
£12,89 Unit Price incl. VAT
15
Thrust washer sp.2,2
GU18211052
£10,39 Unit Price incl. VAT
15
Rondelle éventail sp.2,1
GU18211051
£12,89 Unit Price incl. VAT
15
Rondelle éventail sp.2,4
GU18211054
£12,89 Unit Price incl. VAT
16
Roller bearing
GU92258525
Not Available
17
Gear 5a Z=28
GU14212013
Not Available
18
Rouleau
GU92296750
£1,70 Unit Price incl. VAT
19
Ressort
GU94321051
£1,91 Unit Price incl. VAT
20
Cage à rouleaux
GU92251030
£21,80 Unit Price incl. VAT
21
Bush 5a AP
GU14212210
£86,42 Unit Price incl. VAT
22
Sliding sleeve
GU14231510
Not Available

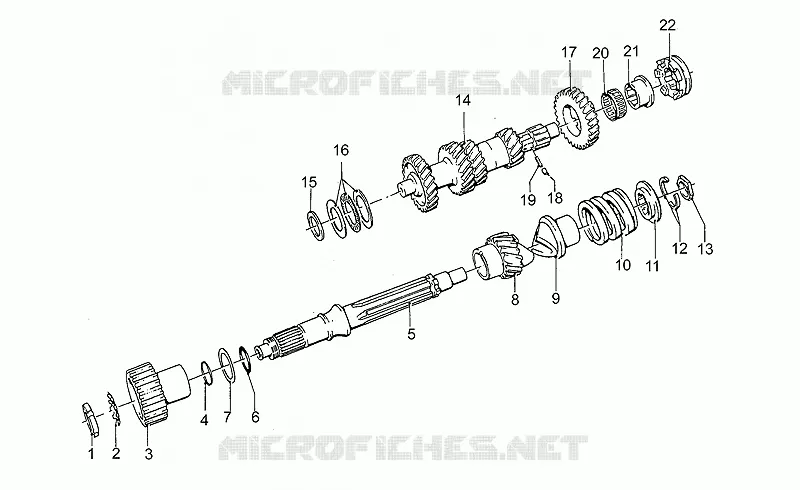

Find the detailed Gear box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
