1
Engine displacement
150
2
Model
SCARABEO
3
Year
2004
4
Trim
Scarabeo (engine Rotax)
5
Parts Catalog
Rear body II
6
Parts Diagram
Parts Catalog
Electrical system I
by
Front body - Front mudguard
Rear body II
1
2
2
3
4
5
5
6
6
7
8
1
Rear fairing, grey
AP8168101
Not Available
1
Rear fairing, blue
AP8158270
Not Available
1
Rear fairing, grey
AP8168090
Not Available
1
Rear fairing, a.green
AP8148257
Not Available
1
Rear fairing, ice green
AP8149079
Not Available
1
Rear fairing, m.grey
AP8149552
Not Available
1
Rear fairing, ch.blue
AP8148779
Not Available
1
Rear fairing, green
AP8158206
Not Available
1
Rear fairing, s.grey
AP8148223
Not Available
1
Rear fairing, Ap. black
AP8148765
Not Available
1
Rear fairing, m.red
AP8148240
Not Available
1
Rear fairing, green
AP8168038
Not Available
1
Rear fairing, grey
AP8158253
Not Available
1
Rear fairing, red
AP8168196
Not Available
1
Rear fairing, red
AP8158187
Not Available
1
Rear fairing, chamois
AP8126639
Not Available
1
Rear fairing, green
AP8168753
Not Available
1
Rear fairing, gold
AP8158284
Not Available
1
Rear fairing, grey
AP8168207
Not Available
1
Rear fairing, silver
AP8178842
Not Available
1
Rear fairing, blue
AP8168829
Not Available
1
Rear fairing, grey
AP8178838
Not Available
2
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
3
Clip pour vis taraud
AP8201763
£1,85 Unit Price incl. VAT
4
Vis bride
AP8152274
£1,80 Unit Price incl. VAT
5
Vis
AP8152345
£1,46 Unit Price incl. VAT
6
Catadioptre arrière, rouge
AP8124718
£16,44 Unit Price incl. VAT
7
Porte-plaque;
AP8149034
£25,42 Unit Price incl. VAT
8
Support catadioptre;
AP8134677
£22,54 Unit Price incl. VAT

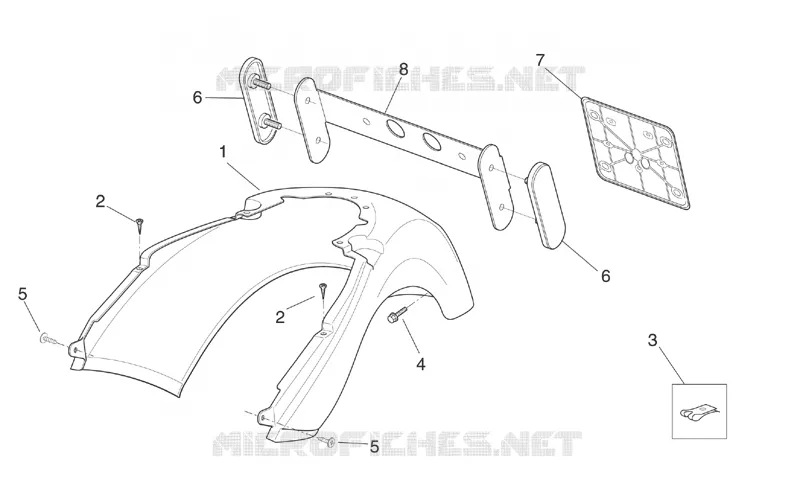

Find the detailed Rear body II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
