Front fork for MOTO GUZZI LAVERDA SCARABEO Norge from 2007

Free shipping for all orders to United Kingdom over £150! See conditions.

Front fork

1

Front fork "Marzocchi"

GU05490230

£392,26 Unit Price incl. VAT

2

RH sleeve

GU05490630

£480,07 Unit Price incl. VAT

3

Fourreau G

GU05490730

£560,22 Unit Price incl. VAT

4

Upper bush

GU03530528

Not Available

5

Cup

GU03530527

Not Available

6

Gasket ring

GU03530526

Not Available

7

Stop ring

GU03530525

Not Available

8

Dust cover

GU03530524

Not Available

9

Pad

GU03530551

Not Available

10

Washer 14x10,5x1,5

GU05530535

Not Available

11

Vis M10x35

GU98682535

£5,08 Unit Price incl. VAT

12

Dowel

GU01530501

Not Available

13

Gr.bouchon cpl.

GU05504530

£87,08 Unit Price incl. VAT

14

Return spring

GU03530553

Not Available

15

Elém.pompage cpl

GU05530530

£82,99 Unit Price incl. VAT

16

Ring

GU03530550

Not Available

17

Lower bush

GU03530510

Not Available

18

Sleeve

GU05525430

£288,94 Unit Price incl. VAT

19

Tuyau précharge

GU05530531

£19,22 Unit Price incl. VAT

20

Ressort

GU05526630

£108,22 Unit Price incl. VAT

21

Stop ring

GU90271016

Not Available

22

Douille

GU05530532

£50,12 Unit Price incl. VAT

23

Ecrou

GU05530533

£16,64 Unit Price incl. VAT

24

Fifth wheel

GU01530503

Not Available

25

Joint torique

GU05530536

£2,47 Unit Price incl. VAT

26

Body

00000000

Not Available

27

O-ring

GU01530509

£0,35 Unit Price incl. VAT

28

Pivot de réglage

GU05530534

£99,66 Unit Price incl. VAT

29

Vis M6X40

GU98680340

£1,26 Unit Price incl. VAT

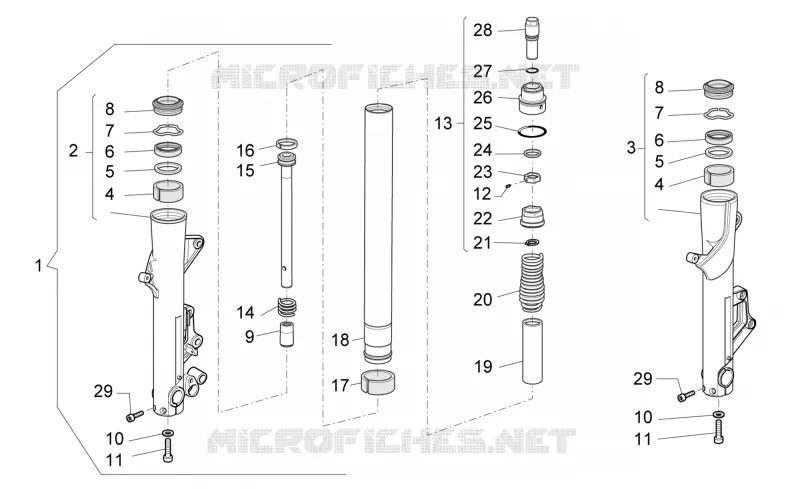

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
