Parts Catalog
Foot rests II
6
Parts Diagram
Parts Catalog
Starter motor
by
Connecting rod - rear shock abs.
Foot rests II
1
2
2
3
3
4
4
5
6
6
7
8
8
9
9
10
10
11
12
13
14
14
15
15
1
RH plate black
GU05443530NA
£686,75 Unit Price incl. VAT
2
Vis M8x30
GU98692430
£5,23 Unit Price incl. VAT
3
Ecrou collier M8x1,25
GU01576530
£12,77 Unit Price incl. VAT
4
Vis M8x25
GU98692425
£2,47 Unit Price incl. VAT
5
Vis TCEI M8x40
GU98680440
£1,02 Unit Price incl. VAT
6
Ecrou autobloqu.
AP8152300
£1,94 Unit Price incl. VAT
7
Protect.dte
GU05446930
£7,97 Unit Price incl. VAT
8
Vis bride
AP8152339
£1,94 Unit Price incl. VAT
9
Bague
GU05446431
£28,32 Unit Price incl. VAT
10
Vis TBEI M5X10
GU98350210
£1,26 Unit Price incl. VAT
11
PLATINE NOIR OPAQUE G
GU05446030NA
£545,65 Unit Price incl. VAT
12
Vis
AP8150046
£1,85 Unit Price incl. VAT
13
Protect.gche
GU05447430
£7,97 Unit Price incl. VAT
14
Caoutchouc
AP8220162
£5,44 Unit Price incl. VAT
15
Caoutchouc
AP8220526
£7,56 Unit Price incl. VAT

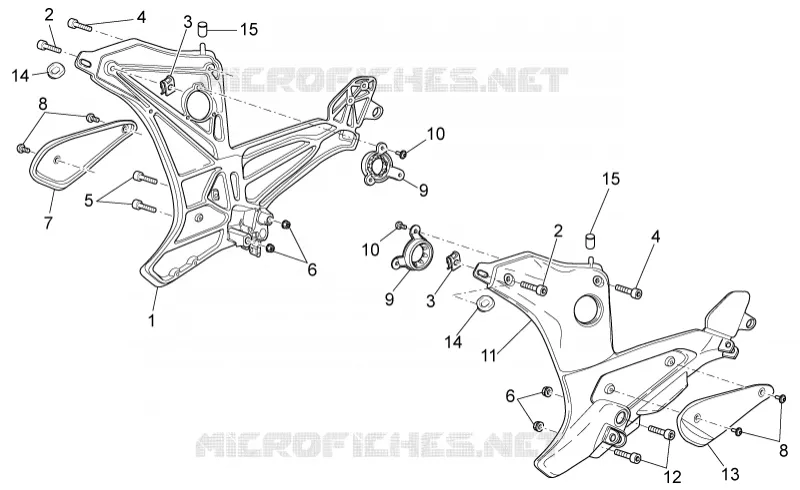

Find the detailed Foot rests II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
