1
Engine displacement
750
2
Model
NEVADA
3
Year
1996
4
Trim
Nevada
5
Parts Catalog
Body
6
Parts Diagram
Parts Catalog
Leather top box kit
by
Stands
Body
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
28
29
30
31
33
34
35
36
37
38
39
40
41
42
43
44
1
Fuel tank
GU31100266
Not Available
1
Fuel tank
GU31100271
Not Available
1
Fuel tank
GU31100285
Not Available
1
Fuel tank
GU31100286
Not Available
1
Fuel tank
GU31100267
Not Available
1
Fuel tank
GU311002651
£880,39 Unit Price incl. VAT
1
Fuel tank
GU31100289
Not Available
1
Fuel tank
GU31100270
Not Available
1
Fuel tank
GU31100272
Not Available
2
Fuel filler cap
GU30103960
Not Available
3
Gasket
GU00823931070
£5,44 Unit Price incl. VAT
4
Decal "Nevada 750"
GU31922067
£60,80 Unit Price incl. VAT
4
Decal "Nevada 750"
GU31922066
£63,76 Unit Price incl. VAT
4
Decal "Nevada 750"
GU31922065
Not Available
5
Hose clamp
GU93305017
£10,24 Unit Price incl. VAT
6
LH fuel cock
GU31105460
Not Available
7
Knob
GU29105750
Not Available
8
screw
GU98200306
£0,80 Unit Price incl. VAT
9
RH fuel cock
GU31105360
Not Available
10
Rubber pipe 12,5X7,8 5/16"
GU00823956080
£45,66 Unit Price incl. VAT
11
Hose clip 12,5x8
GU28157950
£2,64 Unit Price incl. VAT
12
Top screw
GU98230822
Not Available
13
Saddle
GU31460560
Not Available
13
Saddle
GU31460561
Not Available
14
Gasket
GU00823931070
£5,44 Unit Price incl. VAT
15
Nut
GU92670206
£1,03 Unit Price incl. VAT
16
RH body panel with decal
GU31476272
Not Available
16
RH body panel with decal
GU31476271
Not Available
16
RH side panel, no decal
GU31476285
Not Available
16
RH side panel, no decal
GU31476267
Not Available
16
RH side cover blank
GU234762101
£15,29 Unit Price incl. VAT
16
RH body panel with decal
GU31476270
Not Available
16
RH side panel
GU31476266
Not Available
17
RH side panel, no decal
GU31476367
Not Available
17
RH body panel with decal
GU31476371
Not Available
17
LH body panel with decal
GU31476372
Not Available
17
LH body panel with decal
GU31476370
Not Available
17
LH side panel
GU31476366
Not Available
17
LH side panel, no decal
GU31476385
Not Available
17
LH side cover blank
GU314763621
Not Available
18
Decal set
GU31923365
Not Available
18
Decal set
GU31923370
Not Available
18
Decal set
GU31923366
Not Available
19
RH side panel assy, chrome
GU31570665
Not Available
20
Washer
GU95100256
£2,10 Unit Price incl. VAT
21
Rubber spacer
GU91551131
£2,16 Unit Price incl. VAT
22
LH side panel assy, chrome
GU31570765
£152,44 Unit Price incl. VAT
23
Spacer
GU31103565
£7,36 Unit Price incl. VAT
24
RH front protect black
GU31575365
Not Available
25
LH front protect black
GU31575465
Not Available
26
screw
GU98230620
£2,04 Unit Price incl. VAT
27
Washer
GU95001206
Not Available
28
Captive nut
GU92660601
£1,58 Unit Price incl. VAT
29
screw 6X25
GU98230626
£7,98 Unit Price incl. VAT
30
Washer 5,3x10x0,5
GU95100121
Not Available
31
Captive nut
GU92660801
£2,04 Unit Price incl. VAT
33
Rubber spacer
GU93110082
Not Available
34
Pillion grab bar
GU31462261
Not Available
35
screw
GU98326016
£1,66 Unit Price incl. VAT
36
Washer
GU95100142
Not Available
37
Spacer
GU91180607
Not Available
38
Nut
GU92630207
£1,49 Unit Price incl. VAT
39
Sticker
GU29995735
£15,02 Unit Price incl. VAT
40
Decal "Catalythic"
GU30922035
Not Available
41
"MotoGuzzi" decal, gold/black
GU19917535
Not Available
41
"MotoGuzzi"RH decal,gold/black
GU30917860
Not Available
41
Decal "Moto Guzzi"
GU30917501
Not Available
42
screw
GU98230621
Not Available
43
Red line sticker
GU30925510
Not Available
43
Blue line decal
GU30925512
Not Available
43
Blue line decal
GU71920518
Not Available
44
Fuse table decal
GU31945467
£12,59 Unit Price incl. VAT

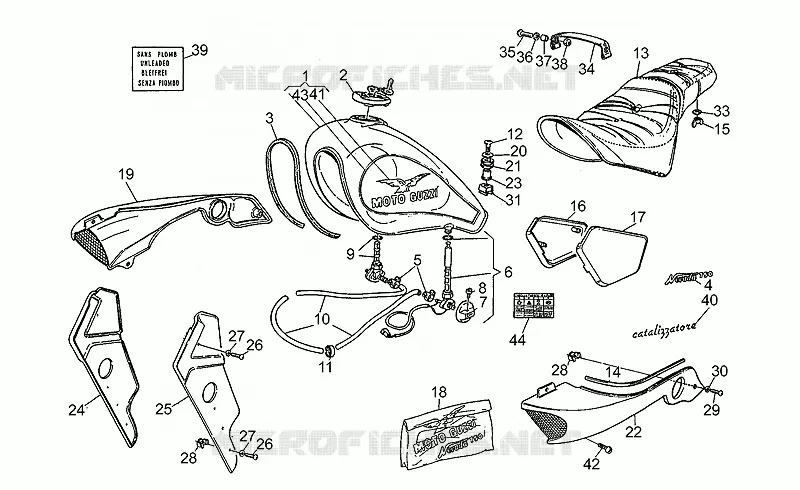

Find the detailed Body MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
