Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Timing system
by
Starter motor
Clutch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
1
Clutch AP
GU27080160
Not Available
2
New cup type
GU19083462
£116,89 Unit Price incl. VAT
3
Snap ring
GU90272075
£7,98 Unit Price incl. VAT
4
Driven clutch disc
GU27084460
Not Available
5
Chain ring MOTOPLAT
GU19067900
Not Available
5
Chain ring Digiplex
GU31067965
Not Available
6
Washer 6,4x10x0,7
GU14217901
Not Available
7
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
8
Rod
GU19085701
Not Available
9
Inner body
GU14086000
£82,28 Unit Price incl. VAT
10
Thrust bearing
GU12087001
Not Available
11
Outer body
GU14086100
£71,74 Unit Price incl. VAT
12
O-ring 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
13
Clutch relese shaft
GU14090201
£89,22 Unit Price incl. VAT
14
Adjuster screw
GU14090400
£42,74 Unit Price incl. VAT
15
Nut M8x1
GU92602508
Not Available
16
Lever return spring
GU94321105
£1,94 Unit Price incl. VAT
17
Pin 7x39
GU95780271
Not Available
18
Split pin
GU95500222
£1,26 Unit Price incl. VAT
19
Gasket ring
GU90403245
£12,05 Unit Price incl. VAT
20
Transmission shaft Z=16
GU27210760
£465,94 Unit Price incl. VAT
21
Gasket ring 6x16x7
GU90400616
£10,73 Unit Price incl. VAT
22
Spacer
GU19213760
£14,47 Unit Price incl. VAT
23
O-ring 23,52x1,78
GU90706235
£1,60 Unit Price incl. VAT
24
Nut
GU19356760
Not Available
25
Nut
GU92602208
Not Available
26
Clutch housing, grey DIGIP.
GU31200480
Not Available
26
Clutch drum
GU19200462
Not Available
27
Cover
GU93180220
£3,68 Unit Price incl. VAT
28
Bearing 25x52x15
GU92201225
£52,09 Unit Price incl. VAT
29
Bearing fixing plate
GU19203460
£17,52 Unit Price incl. VAT
30
screw
GU98054314
£0,49 Unit Price incl. VAT
31
Washer 6,4x10x0,7
GU14217901
Not Available
32
screw
GU98620330
£0,49 Unit Price incl. VAT
33
screw
GU98620435
Not Available
34
screw
GU98620450
£1,49 Unit Price incl. VAT
35
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
36
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
37
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT

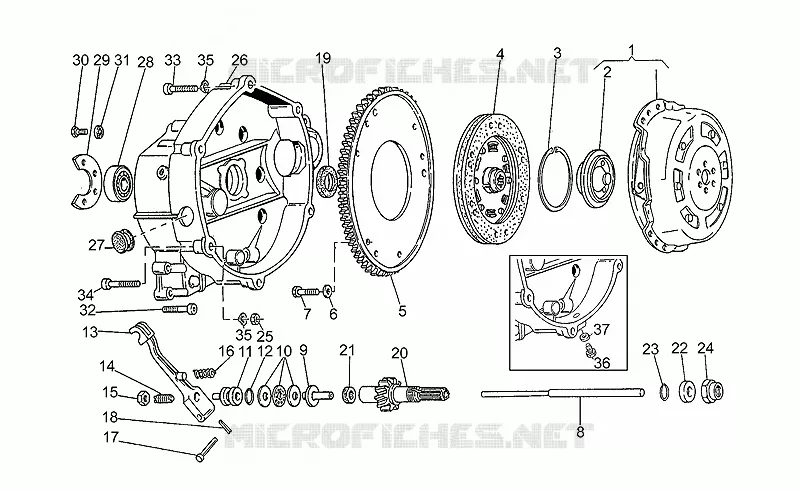

Find the detailed Clutch MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
