Transmission cage for MOTO GUZZI LAVERDA SCARABEO Nevada from 1993

Free shipping for all orders to United Kingdom over £150! See conditions.

Transmission cage

1

Gearbox cover, grey

GU31200880

Not Available

1

Box cover, grey

GU19200861

Not Available

2

Bearing 15x35x11

GU92204215

£38,80 Unit Price incl. VAT

3

Gasket ring 28x40x7

GU90402841

£3,04 Unit Price incl. VAT

4

O-ring 13,95x2,92

GU90706140

£1,25 Unit Price incl. VAT

5

Plate

GU23213872

£14,08 Unit Price incl. VAT

5

plate

GU23213870

£8,66 Unit Price incl. VAT

6

screw

GU98622314

£0,67 Unit Price incl. VAT

7

Washer 6,4x10x0,7

GU14217901

Not Available

8

Plate

GU19235800

£21,23 Unit Price incl. VAT

9

screw

GU98622314

£0,67 Unit Price incl. VAT

10

Gasket

GU23200370

£6,84 Unit Price incl. VAT

11

Sensor

GU19207220

£88,42 Unit Price incl. VAT

12

Gasket 8,25x15x1

GU12154200

£2,45 Unit Price incl. VAT

13

Screw M12x1,25

GU19237800

£20,20 Unit Price incl. VAT

14

Low nut M12x1,25

GU92602512

£1,57 Unit Price incl. VAT

15

Gasket

GU19201120

£5,68 Unit Price incl. VAT

16

Bushing 6,6x9x13

GU19002020

£8,24 Unit Price incl. VAT

17

Gearbox, grey

GU19200261

Not Available

17

Gearbox, grey

GU31200280

Not Available

18

screw M6x35

GU98620335

£1,14 Unit Price incl. VAT

18

screw

GU98620330

£0,49 Unit Price incl. VAT

19

screw

GU98620435

Not Available

20

Pawl

GU55234700

£82,48 Unit Price incl. VAT

21

Lever return spring

GU94321067

£1,86 Unit Price incl. VAT

22

Breather plug

GU19206501

£16,73 Unit Price incl. VAT

23

Gasket

GU10528900

£4,45 Unit Price incl. VAT

24

Oil plug

GU19351200

Not Available

25

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

26

Oil unload plug M10x1

GU31003766

£15,77 Unit Price incl. VAT

27

Oil bulhead

GU23208272

£84,68 Unit Price incl. VAT

27

Oil bulhead

GU19208220

Not Available

28

Ball bearing 20x42x12

GU92201120

£32,68 Unit Price incl. VAT

29

Bushing 10,25x15,7x8

GU19202320

£10,75 Unit Price incl. VAT

30

Gearbox assy, grey

GU31991580

Not Available

30

Gear box assy

GU31991582

Not Available

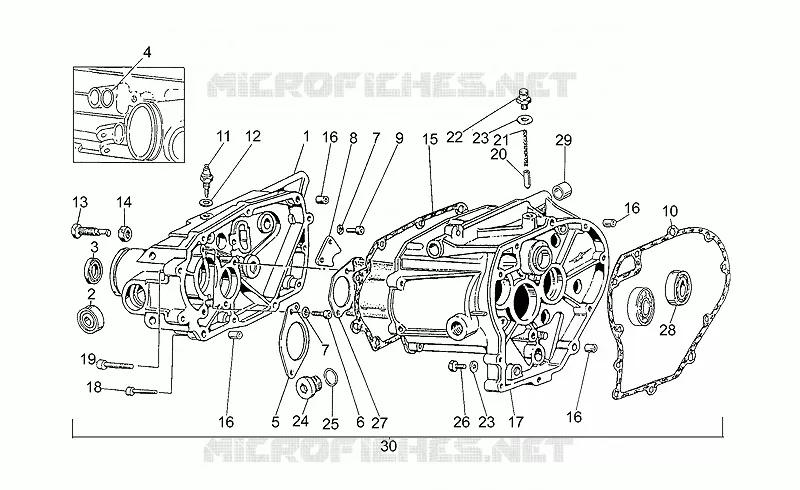

Find the detailed Transmission cage MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
