1
Engine displacement
350
2
Model
NEVADA
3
Year
1993
4
Trim
Nevada
5
Parts Catalog
Carburettors
6
Parts Diagram
Parts Catalog
Gear box
by
Crankcase
Carburettors
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
18
19
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1
Gas valve 30
GU27934820
£87,37 Unit Price incl. VAT
2
Conical pin X57
GU31937780
Not Available
3
Needle valve 262H
GU27935521
Not Available
4
Main jet 105
GU19935750
Not Available
5
Idle jet 42
GU23935910
Not Available
6
Starter jet 60
GU19936000
£9,53 Unit Price incl. VAT
7
Needle valve
GU19934600
Not Available
8
Float gr.9,5
GU27934315
Not Available
9
Tyre
0000000
Not Available
10
Wire tensioner screw
GU12937200
£5,36 Unit Price incl. VAT
11
screw
GU14934650
£1,79 Unit Price incl. VAT
12
Cover
GU19935080
Not Available
13
Tyre
0000000
Not Available
14
Plate
GU19938580
Not Available
15
Conical pin clip
GU65933600
£1,85 Unit Price incl. VAT
16
Tyre
0000000
Not Available
18
Float chamber fix.plug
GU27933720
£18,85 Unit Price incl. VAT
19
Gaskets set
GU19939980
Not Available
21
screw
GU13937900
Not Available
22
Starter device cover
GU17937450
Not Available
23
Tyre
0000000
Not Available
24
Valve spring
GU39937600
Not Available
25
Starter valve
GU13937800
£12,94 Unit Price incl. VAT
26
Adj.min.eng.speed screw
GU13936200
Not Available
27
Spring
GU13936300
£1,14 Unit Price incl. VAT
28
Flat washer
GU65933700
Not Available
29
Tyre
0000000
Not Available
30
Gas valve adjuster screw
GU13936600
Not Available
31
Spring
GU13936700
Not Available
32
Flat washer
GU14931650
Not Available
33
Tyre
0000000
Not Available
34
Tyre
0000000
Not Available
35
Fuel filter
GU43934000
£2,52 Unit Price incl. VAT
36
Fuel pipe union cap
GU31934680
£16,19 Unit Price incl. VAT
37
Gasket
GU13934700
Not Available
38
Cap fixing screw
GU10934900
Not Available
39
Tyre
0000000
Not Available
40
Tyre
0000000
Not Available
41
Float chamber plastica
GU31934460
Not Available
41
Aluminium float chamber
GU19934480
£34,87 Unit Price incl. VAT
42
Float pin
GU13933100
£17,57 Unit Price incl. VAT

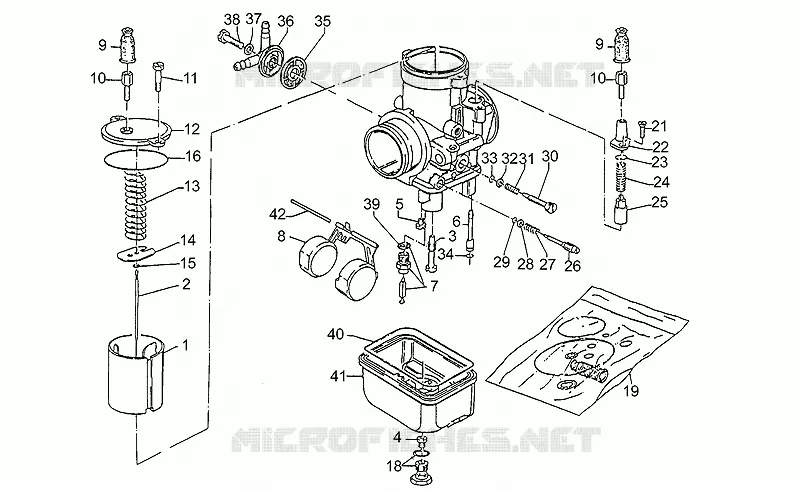

Find the detailed Carburettors MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
