Parts Catalog
Electrical system I
6
Parts Diagram
Parts Catalog
Swing arm
by
Electrical system II
Electrical system I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Electrical system
GU31747167
Not Available
2
Dashboard cable
GU31747267
£304,64 Unit Price incl. VAT
3
Taillight wiring harn.
GU31747365
Not Available
4
Neutral sensor cable
GU31724540
Not Available
5
RH clamp
GU30477101
Not Available
6
LH plate
GU30477200
£10,22 Unit Price incl. VAT
7
Relay Siemens A302/B1008
GU30732560
£40,60 Unit Price incl. VAT
8
Flasher unit
GU17750520
Not Available
9
Fuse 15A
GU28742560
Not Available
10
Fuse holder box
GU30732200
£9,80 Unit Price incl. VAT
11
Maintenance
GU30756100
£15,38 Unit Price incl. VAT
12
Relais support
GU30732400
£12,34 Unit Price incl. VAT
13
Hex socket screw
GU98622318
£0,61 Unit Price incl. VAT
14
Washer 6,15x11x0,8
GU95004206
Not Available
15
Washer
GU95100120
Not Available
16
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
17
Clamp
GU31749765
£63,60 Unit Price incl. VAT
18
screw
GU61127520
£0,77 Unit Price incl. VAT
19
Ring nut
GU61127220
£15,94 Unit Price incl. VAT
20
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT

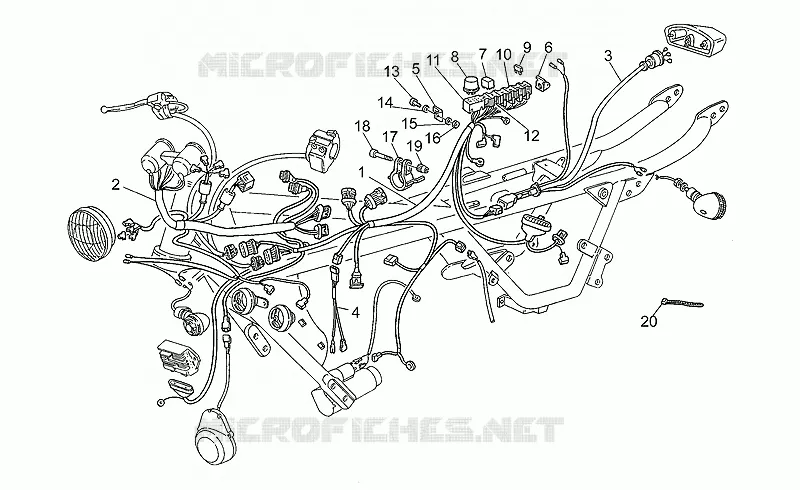

Find the detailed Electrical system I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
