1
Electrical system
GU31747166
£175,73 Unit Price incl. VAT
2
Dashboard cable
GU31747266
£25,38 Unit Price incl. VAT
3
Taillight wiring harn.
GU31747365
Not Available
4
Alternator-regulator wiring
GU29725850
Not Available
5
Fuse holder box
GU30743000
Not Available
6
Fuse 15A
GU28742560
Not Available
7
Alternator-regulator wiring
GU29748550
Not Available
8
Washer
GU95004205
£1,13 Unit Price incl. VAT
9
screw
GU98622214
£0,98 Unit Price incl. VAT
10
Washer
GU95100128
Not Available
11
Captive nut
GU92660501
£0,96 Unit Price incl. VAT
12
plate
GU31746365
Not Available
13
Starting relay
GU30732510
£19,01 Unit Price incl. VAT
14
Flasher unit
GU17750520
Not Available
15
Relais support
GU31704061
Not Available
16
Neutral sensor cable
GU31724540
Not Available
17
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
18
screw
GU98622214
£0,98 Unit Price incl. VAT
19
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
20
Nut
GU92630105
£1,68 Unit Price incl. VAT
21
screw
GU98622218
Not Available

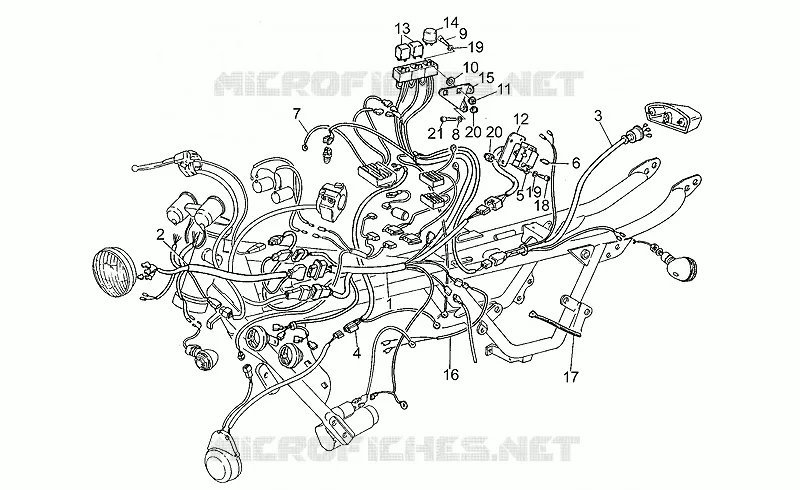

Find the detailed Electrical system II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
