Parts Catalog
Fairing 1990
6
Parts Diagram
Parts Catalog
Fairing 1989
by
Rear fairing-seat cover
Fairing 1990
1
2
3
4
5
6
7
8
9
9
9
10
11
12
13
14
15
15
15
15
16
17
18
19
20
21
21
22
22
23
24
25
26
27
28
29
30
31
32
33
1
Windshield
GU28575496
Not Available
1
Windshield
GU28575494
Not Available
1
Windshield
GU285754921
Not Available
2
Windscreen
GU28577278
Not Available
3
screw
GU98260416
Not Available
4
Spacer
GU90716057
Not Available
5
Washer
GU95007204
£1,50 Unit Price incl. VAT
6
Nut M4x0,7
GU92630104
£0,96 Unit Price incl. VAT
7
Lower RH fairing sect.
GU28570394
£381,89 Unit Price incl. VAT
7
Lower RH fairing sect.
GU28570396
Not Available
7
Lower RH fairing sect.
GU285703921
Not Available
8
plate
GU28571292
Not Available
9
screw
GU98326016
£1,66 Unit Price incl. VAT
10
Nylon washer 6X17X1
GU66478610
£1,70 Unit Price incl. VAT
11
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
12
Lower LH fairing sect.
GU285704921
Not Available
12
Lower LH fairing sect.
GU28570494
Not Available
12
Lower LH fairing sect.
GU28570496
Not Available
13
RH fairing fixing plate
GU285708781
£40,94 Unit Price incl. VAT
14
LH support
GU285708791
£24,65 Unit Price incl. VAT
15
screw
GU98230620
£2,04 Unit Price incl. VAT
16
Spacer
GU91180607
Not Available
17
Rubber spacer
GU91551085
Not Available
18
Nut
GU92601206
Not Available
19
RH Under-fairing
GU28570378
Not Available
19
Lower RH fairing sect.
GU28570379
Not Available
20
LH Under-fairing
GU28570479
Not Available
20
Lower LH fairing sect.
GU28570478
Not Available
21
Washer
GU95001206
Not Available
22
Clip
GU28576590
£2,35 Unit Price incl. VAT
23
Rearview mirror
GU17769861
Not Available
24
screw
GU98822320
£1,27 Unit Price incl. VAT
25
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
26
Washer
GU95000206
£1,02 Unit Price incl. VAT
27
RH side dashb.panel
GU28576295
£106,08 Unit Price incl. VAT
28
LH side dashb.panel
GU28576395
Not Available
29
Gasket
GU00823932085
£9,79 Unit Price incl. VAT
30
Upper fairing supp.
GU28578690
Not Available
31
Captive nut
GU92660601
£1,58 Unit Price incl. VAT
32
plate
GU28579478
Not Available
33
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT

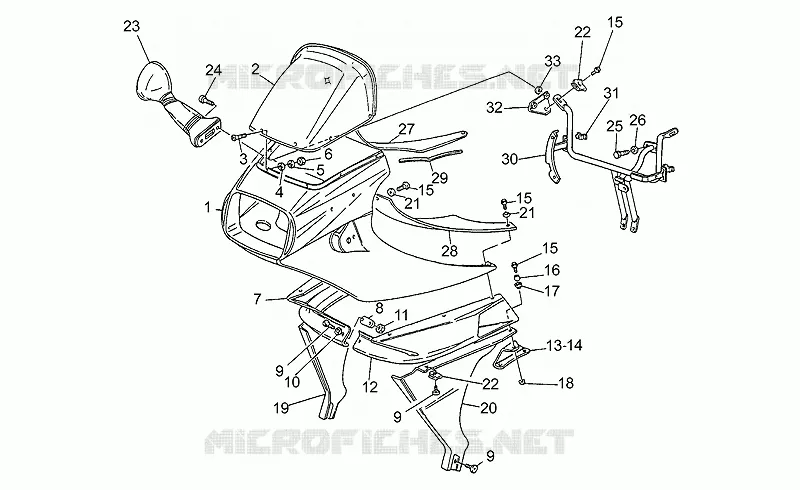

Find the detailed Fairing 1990 MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
