Parts Catalog
Handlebar-controls 1988
6
Parts Diagram
Parts Catalog
Electrical system
by
Handlebar-controls, 1st series
Handlebar-controls 1988
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
1
Left half handlebar
GU28600778
Not Available
2
Throttle
GU27603400
Not Available
3
Throttle
GU27738815
£152,47 Unit Price incl. VAT
4
Steering block
GU27604415
£11,33 Unit Price incl. VAT
5
Mobile body
GU27603815
Not Available
6
BLOC
GU27604515
£12,77 Unit Price incl. VAT
7
Bague
GU27603620
£3,43 Unit Price incl. VAT
8
Poignée dr.
GU27603520
£35,20 Unit Price incl. VAT
9
Throttle cable
GU28117578
Not Available
10
Splitter
GU28117478
Not Available
11
Adjuster screw
GU28607678
Not Available
12
Throttle cable w/ splitter
GU28117778
Not Available
13
Clutch lever cpl.
GU27605515
Not Available
14
Clutch lever
GU27605715
Not Available
15
screw
GU27601215
£0,73 Unit Price incl. VAT
16
U-bolt
GU27601015
Not Available
17
Clutch lever U-bolt
GU27601815
Not Available
18
Register
GU30602500
Not Available
19
Starter lever
GU27659415
Not Available
20
Clutch cable
GU28093079
Not Available
20
Clutch cable
GU28093078
£55,20 Unit Price incl. VAT
21
Protection
GU27663815
£11,88 Unit Price incl. VAT
22
Choke control transmission
GU28132878
Not Available
23
Splitter
GU30607910
£20,21 Unit Price incl. VAT
24
Vis M6X35
GU98620335
£1,14 Unit Price incl. VAT
25
Ecrou M6x1
GU92630106
£5,03 Unit Price incl. VAT
26
Rondelle
GU95000206
£1,02 Unit Price incl. VAT
27
Bague
GU27603120
£3,60 Unit Price incl. VAT
28
Rondelle nylon
GU29606970
£4,98 Unit Price incl. VAT
29
Cap
GU12717600
£2,22 Unit Price incl. VAT
30
Choke cable
GU28133578
£9,00 Unit Price incl. VAT
31
Right half handlebar
GU28600678
Not Available
32
LH lights selector
GU27738015
Not Available
33
Cover
GU61605230
Not Available
34
LH hand grip
GU27603020
£40,18 Unit Price incl. VAT
35
Balancing assy
GU28602790
Not Available
35
Balancing assy lungo
GU28602779
Not Available
36
Rubber spacer
GU93180050
Not Available

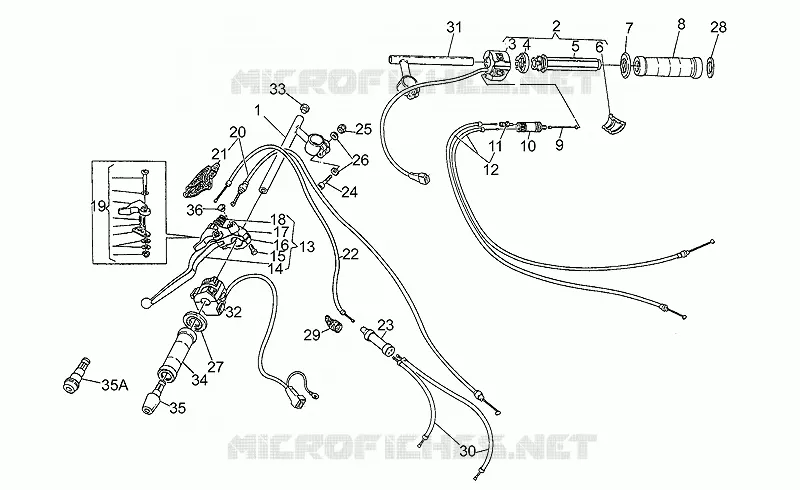

Find the detailed Handlebar-controls 1988 MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
