Parts Catalog
Rear master cylinder
6
Parts Diagram
Parts Catalog
Front brake m.cyl., 1st series
by
Front wheel
Rear master cylinder
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
24
25
26
27
28
28
29
30
30
31
31
31
32
33
34
35
1
Brake lever
GU28677060
Not Available
2
Caoutchouc
GU14251001
£3,65 Unit Price incl. VAT
3
O-ring
GU90706141
Not Available
4
Flat washer
GU95004215
£1,24 Unit Price incl. VAT
5
GOUPILLE
GU95500227
£1,56 Unit Price incl. VAT
6
Fourchette
GU95740175
£65,20 Unit Price incl. VAT
7
Nut
GU92690073
Not Available
8
Tie rod
GU19675100
Not Available
9
Pin
GU95770265
Not Available
10
Washer
GU95129110
Not Available
11
Goupille
GU95500222
£1,26 Unit Price incl. VAT
12
Maît.cyl.frein AR
GU31666990
£361,00 Unit Price incl. VAT
13
Pump control lever
GU28667560
Not Available
14
Rear brake lever spring
GU19667600
Not Available
15
screw
GU98202525
Not Available
16
Nut
GU92602205
£0,96 Unit Price incl. VAT
17
Distributor
GU28668046
Not Available
17
Pressure valve
GU28668578
Not Available
18
Cap
GU17093850
Not Available
19
Kit révision pompe
GU17659350
£96,00 Unit Price incl. VAT
20
Tank
GU28665060
Not Available
21
Vis
GU98326009
£2,03 Unit Price incl. VAT
22
U-bolt
GU93301175
£2,60 Unit Price incl. VAT
23
pipe
GU95985624
Not Available
24
Hose clamp
GU19157800
Not Available
25
Switch
GU63657000
£54,85 Unit Price incl. VAT
26
Garniture
GU25656100
£1,57 Unit Price incl. VAT
27
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
28
Rondelle
GU95000206
£1,02 Unit Price incl. VAT
29
pipe
GU28658560
Not Available
30
Oil pipe screw *
GU95990028
£14,99 Unit Price incl. VAT
31
Garniture
GU25656100
£1,57 Unit Price incl. VAT
32
Pump cover
GU18667450
Not Available
33
Gr.révision raccordde pomp
GU19659500
£22,94 Unit Price incl. VAT
34
Lever overhaul kit
GU19659600
Not Available
35
Ecrou
GU92602206
£1,68 Unit Price incl. VAT

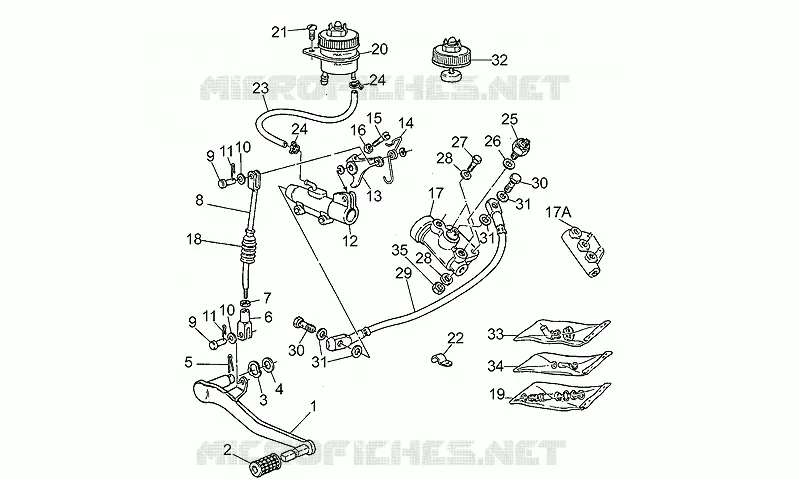

Find the detailed Rear master cylinder MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
